Product Dimensions 45.13"h x 29.75"w x 19.75"d
We’ve learned that sometimes the best way to anticipate the needs and desires of your market is to listen to the men and women who install your product. Inspired by our most popular model, we have designed an install-friendly hood that makes all the “what if’s” of installation a non-issue.Read More
Keeping the pyramid shape, we expanded the chimney flue (duct cover) just wide enough to conceal off-center ducting. Bringing our lights to the front of the hood provides greater ambiance in the most used cooking area and also avoids drawing attention towards any imperfections from the backsplash. The SCB516 has every kind of installer in mind.

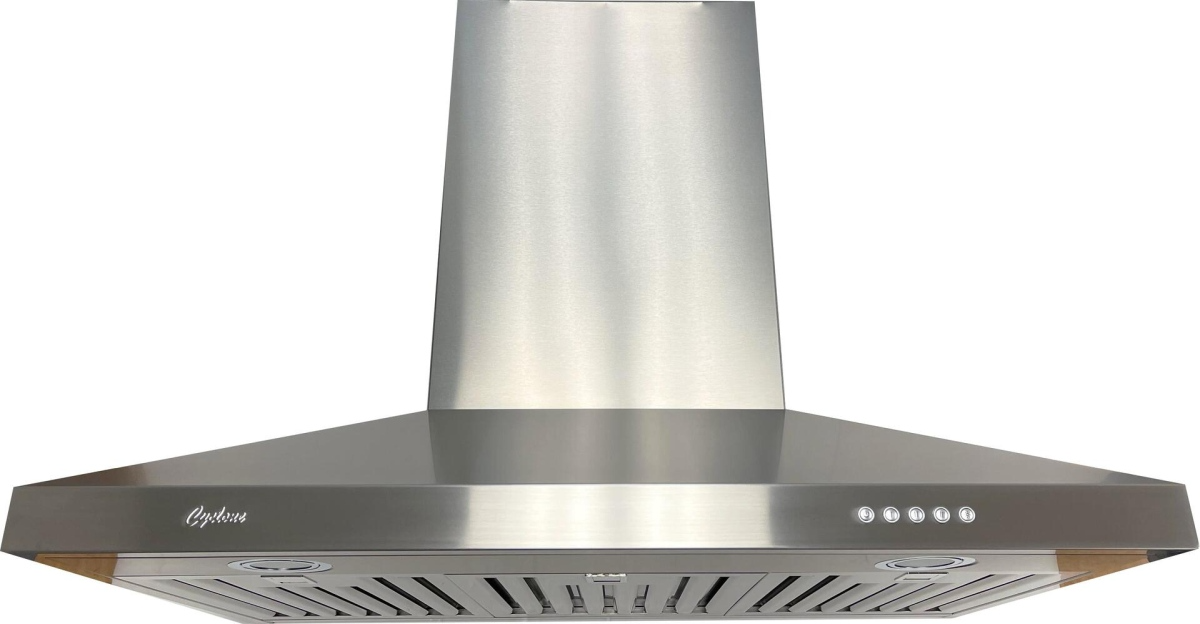

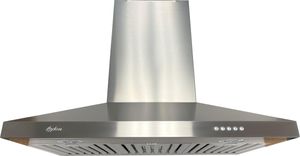

Wall mount range hood
6’’ round duct adapter
Non-stick aluminum fan blades
3 speed push button control
2 LED lights (2 x 1.4W, 4000K)
Quick release stainless steel baffle filters
Standard chimney fits up to 9 ft. ceiling
Plug-in connection
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Vent Location | Top |
| Grease Filter Type | Baffle |
| Duct Size (in.) | 6" Round |
| Bulb Type | LED |
| Sones Rating | 2 - 6 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 550 |
| Range Hood Features | Light, Removable Grease Filter |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 3 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Appliance Fit Width (cm) | 76 |
| Width (in.) | 29.75 |
| Width (cm) | 75.57 |
| Height (in.) | 45.13 |
| Height (cm) | 114.63 |
| Depth (in.) | 19.75 |
| Depth (cm) | 50.17 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Alito |
| Voltage | 120 |
| Amp | 2.5 |
| Frequency | 60 |
