Product Dimensions 45.5"h x 29.63"w x 19.25"d

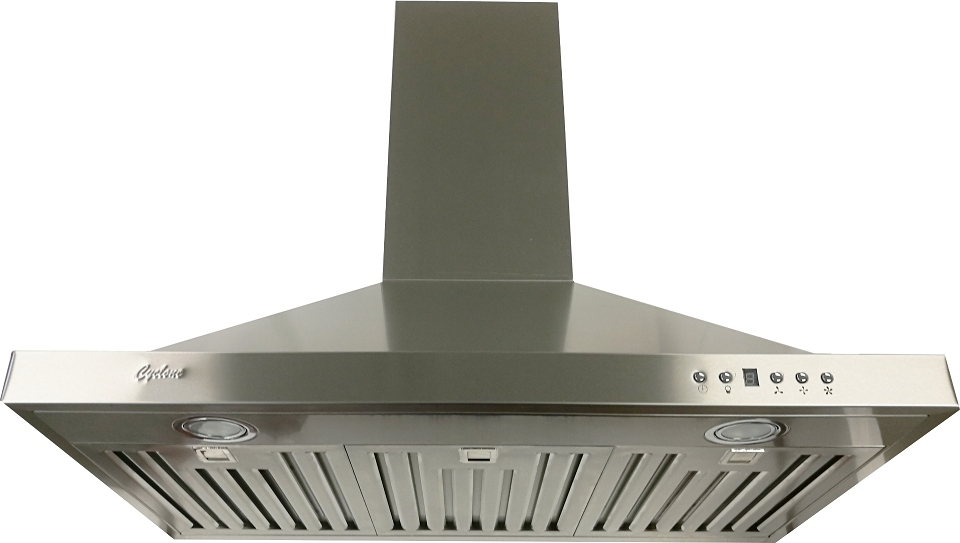

Strong and sturdy with attractive lines and an imposing frame, the SC(B)519 is fitted with a time-delay OFF feature up to nine minutes, a 550 CFM fan, two bright front mounted LED lights and a digital three-speed push button control panel.Read More
Wall mount range hood
6’’ round duct adapter
Non-stick aluminum fan blades
3 speed push button control
2 LED lights (2 x 1.4W, 4000K)
Quick release stainless steel baffle or aluminum mesh filters
Standard chimney fits up to 9 ft. ceiling
Up to 9 minutes time-delay OFF feature
Plug-in connection
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Vent Location | Top |
| Grease Filter Type | Baffle |
| Duct Size (in.) | 6" Round |
| Bulb Type | LED |
| Sones Rating | 2 - 6 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 550 |
| Range Hood Features | Light, Removable Grease Filter |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 3 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Appliance Fit Width (cm) | 75 |
| Width (in.) | 29.63 |
| Width (cm) | 75.26 |
| Height (in.) | 45.5 |
| Height (cm) | 115.57 |
| Depth (in.) | 19.25 |
| Depth (cm) | 48.9 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Alito |
| Voltage | 120 |
| Amp | 2.5 |
| Frequency | 60 |
