Product Dimensions 45.75"h x 35.5"w x 19.5"d
The SC(B)514 makes a statement of strength and power with a bold frame and 550 CFM fan. Features mesh or baffle filters, two bright LED lights and a three-speed panel for total control. It is also fitted with a time-delay OFF feature up to nine minutes.Read More

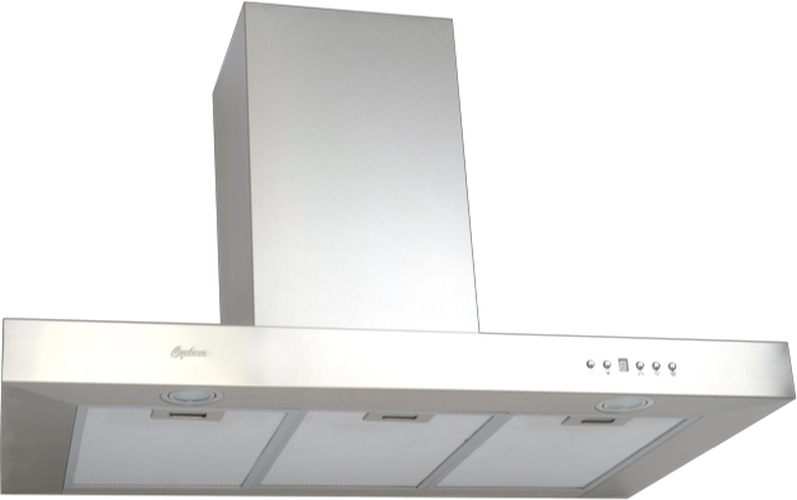

Wall mount range hood
6” round duct adapter
Non-stick aluminum fan blades
3 speed push button control
2 LED lights (2 x 1.4W, 4000K)
Quick release stainless steel baffle or aluminum mesh filters
Standard chimney fits up to 9 ft. ceiling
Up to 9 minute time-delay OFF feature
Plug-in connection
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Grease Filter Type | Baffle |
| Duct Size (in.) | 6" Round |
| Bulb Type | LED |
| Sones Rating | 2 - 6 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 550 |
| Range Hood Features | Light, Removable Grease Filter, Self-Cleaning |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 3 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Appliance Fit Width (cm) | 91 |
| Width (in.) | 35.5 |
| Width (cm) | 90.17 |
| Height (in.) | 45.75 |
| Height (cm) | 116.21 |
| Depth (in.) | 19.5 |
| Depth (cm) | 49.53 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Alito |
| Voltage | 120 |
| Amp | 2.5 |
| Frequency | 60 |
