Product Dimensions 16"h x 34"w x 17.94"d

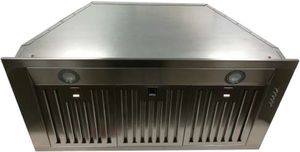

Cyclone’s newest insert, the BXB612 is discreet and quiet yet powerful enough to leave a distinct impression. Powered at 1200 CFM it is well-suited for high heat cooking. The sleek BXB612 range hood cannot be seen from eye level, as it is designed to fit into your custom wood canopy.Read More
Insert range hood
8’’ round duct adapter
Non-stick aluminum fan blades
3 speed push-button control
Quick release dishwasher-safe baffle filters
3 LED light bulbs (3 x 1.4W, 4000K)
3 minutes time-delay OFF feature
Plug-in connection
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| Ventilation Type | Ducted |
| Vent Location | Top |
| Grease Filter Type | Baffle |
| Duct Size (in.) | 8" Round |
| Bulb Type | LED |
| Sones Rating | 2 - 14 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 1200 |
| Range Hood Features | Light, Removable Grease Filter |
| Fan Speed Options | 3 |
| Appliance Fit Width (in.) | 34 |
| Appliance Fit Width (cm) | 86 |
| Width (in.) | 34 |
| Width (cm) | 86.36 |
| Height (in.) | 16 |
| Height (cm) | 40.64 |
| Depth (in.) | 17.94 |
| Depth (cm) | 45.57 |
| Collection | PRO |
| Voltage | 120 |
| Frequency | 60 |
