Every element of the DT8R is optimized for superior quality and sound. Each part is developed from scratch for a listening experience that delivers and a product that endures. The DT8R is simply the best sounding in-ceiling speaker for multi-room and home theater applications all things considered. Great performance, invisibility and ease of installation are why it endures.Read More
Exclusive 8" composite mineral-filled polypropylene driver cones offer superior transparency
Annealed aluminum tweeter dome provides great transients and smooth response
High definition crossover network with Mylar capacitors delivers the purest high frequencies
Improved sound dispersion and off-axis response casts incredible sound throughout the room
DT Series speakers use exclusive composite-filled polypropylene driver cones with rubber surrounds for superior transparency and longevity.
Crossover is crucial to high-end audio quality. The high definition crossover network in DT Series speakers is how each one delivers the purest high frequencies.
Great transients and smooth response are the direct result of the perfect rigidity and lightness of an acoustically optimized annealed aluminum tweeter dome.

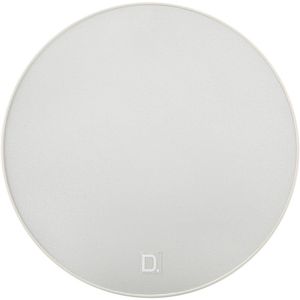

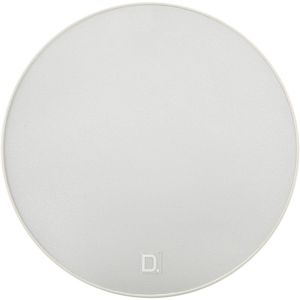

Speakers that visually dominate the room distract from the sound. DT Series speakers have whisker-thin micro-perf grilles with slim bezels that can be custom painted to blend in.
General Specs | |
| Weight Kilogram | 2.1318824 |
| MPN | UGDD |
| RMS Power Handling (Watts) | 225 |
| Height (cm.) | 22.225 |
| Depth (cm.) | 9.6774 |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Depth (in.) | 3.81 |
| Height (in.) | 8.75 |
General | |
| colour/Finishes | White |
| Qty Included | 1 |
| Availability | US |
| Depth | 3.81" (9.68 cm) |
| Grille Dimensions | 9.75" (24.77 cm) diameter |
| Cutout Diameter | 8-3/4" (22.23cm |
| Recommended Power (Min/Max) | 10/225w/Ch |
Driver Complement | |
| Pivoting Dome Tweeter - Tweeter | (1) 1" (2.54 cm) d (Round) Pivoting Dome Tweeter - Tweeter |
| Mid/Woofer | (1) 8" (20.32 cm) d (Round) - Mid/Woofer |
In-Ceiling Mount | |
| Shape | Round |
| Dimensions | 8.75" (22.23 cm) diameter |
Audio Quality | |
| Total Frequency Response | 27 Hz to 30 Hz |
| Nominal Impedance | 8 Ohms |
| Max Sensitivity (1 watt @ 1 meter) | 89 dB |
Crossover | |
| A/V Receiver Crossover Settings | Small (60 Hz) |
Warranty | |
| Drivers Warranty | 5 Years |
Shipping Cartons | |
| Carton 1 | 11.1" (28.19 cm) h x 11.1" (28.19 cm) w x 6.1" (15.49 cm) d - 4.7 lbs (2.13 kg) |
