High performance home audio is an experience to savor. With the RCS II, great sound that all but disappears is what makes these in-ceiling speakers so special. The technologies involved with producing the amazing audio took decades to perfect, but will only take you milliseconds to appreciate.Read More
Wave Launch™ technology makes your ears think the in-ceiling speakers are right in front of you
Two cast basket drivers and pressure-coupled Low Bass radiators bring deep bass and high punch
Pure aluminum dome tweeter produces pristine high frequencies
Minimized visibility puts the focus on sound quality rather than the speaker
White Finish

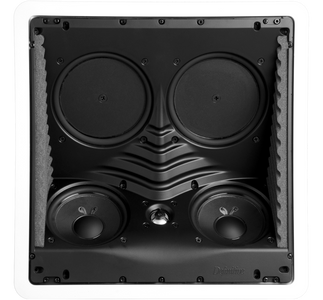

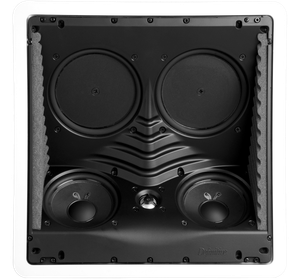

RCS II speakers have a D’Appolito driver array aimed at the listening area, which includes two cast-basket bass/midrange drivers and a pure aluminum tweeter.
The active driver/bass radiator combination achieves a deep, dynamic low-frequency response that blends with a subwoofer for a quality other in-ceiling systems haven’t seen.
Precisely configured dual angled baffles, a computer-optimized ribbed surface and dampening panels achieve linear uncoloured sound that seems to float in space.
Non-resonant sealed medite enclosures are inert and free of vibrations, with six rotating dogleg clamps and beefy wood screws for easy, secure installation.
General Specs | |
| Weight Kilogram | 9.979024 |
| MPN | UDSA |
| RMS Power Handling (Watts) | 250 |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
Overall | |
| Total Pieces | 1 |
Audio Quality | |
| Total Frequency Response | 22 Hz → 30 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 92 dB |
Accessories | |
| Included Accessories | (1) Wall Mounting Template; (1) Paint Mask; (1) Paintable Grille; (1) Self Adhering Foam Gasket |
Warranty | |
| Cabinet Warranty | 5 years |
| Drivers Warranty | 5 years |
Shipping Cartons | |
| Carton 1 | 19.5" (49.53 cm) h x 18.63" (47.32 cm) w x 12" (30.48 cm) d - 22 lbs (9.98 kg) |
Loudspeaker | |
| Availability | US |
| Driver Complement | (1) 1" (2.54 cm) d (Round) Tweeter - Tweeter; (2) 5.25" (13.34 cm) d (Round) Midrange - Tweeter; (2) 6.5" (16.51 cm) d (Round) Bass Radiator - Tweeter |
| Grille Dimensions | 15.5" (39.37 cm) h x 15.5" (39.37 cm) w |
