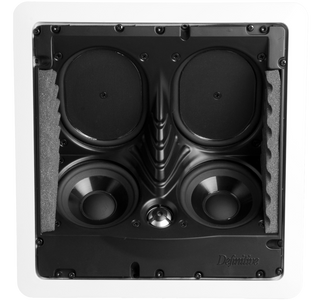

The in-ceiling UIW RCS III reshapes sound waves to make you believe you’re sitting front row center. Patented Wave Launch technology turns overhead speakers into works of engineering wonder, using precisely configured dual angle baffles to create acoustics that surround you anywhere in the room. With speakers that produce so much sound from such a minimal space, your ears never had it so good.Read More
Front row audio experiences come to life with patented Wave Launch technology
Breathtaking sound dynamics ring true with the pure aluminum dome tweeter
Minimal visibility and easy installation with six rotating dogleg clamps and hefty wood screws
Integrated wood enclosure creates greater audio performance with uncoloured clarity
White Finish
In-ceiling speakers reach new heights with deep, dynamic low-frequency response and smooth, controlled roll-off for seamless blending with subwoofers.
Smooth, high frequency response rings true from the pure aluminum dome tweeter set among high definition bass drivers with cast baskets.
Enclosed in dense wood medite cabinets for vibration-free sound, the UIW RLS II supplies natural, uncoloured midrange and tight, detailed bass.
The sound you demand from the finest freestanding loudspeakers, now in a full-range, flush mount speaker engineered to hide within your walls.
General Specs | |
| Product Weight (lbs.) | 13 |
| Weight Kilogram | 6.350288 |
| MPN | UEOA |
| RMS Power Handling (Watts) | 250 |
| Height (cm.) | 27.94 |
| Depth (cm.) | 7.9248 |
| Product Weight (kg) | 5.85 |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Depth (in.) | 3.12 |
| Height (in.) | 11 |
Overall | |
| Total Pieces | 1 |
Accessories | |
| Included Accessories | (1) Wall Mounting Template; (1) Paint Mask; (1) Paintable Grille; (1) Self Adhering Foam Gasket |
Warranty | |
| Cabinet Warranty | 5 years |
| Drivers Warranty | 5 years |
Shipping Cartons | |
| Carton 1 | 16" (40.64 cm) h x 12" (30.48 cm) w x 13.25" (33.66 cm) d - 14 lbs (6.35 kg) |
In-Ceiling Speaker | |
| Quantity Included | US |
| Availability | (1) 1" (2.54 cm) d (Round) Tweeter - Tweeter; (2) 5.25" (13.34 cm) d (Round) Midrange - Tweeter; (2) 6.5" (16.51 cm) d (Round) Bass Radiator - Tweeter |
| Driver Complement | 15.5" (39.37 cm) h x 15.5" (39.37 cm) w |
| Weight | 13 lbs (5.9 kg) |
| Grille Dimensions | 11.5" (29.21 cm) h x 11.5" (29.21 cm) w |
In-Ceiling Mount | |
| Shape | Rectangle |
| Dimensions | 10.38" (26.37 cm) h x 10.38" (26.37 cm) w |
Inputs | |
| Ethernet | Yes |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - na |
Audio Quality | |
| Total Frequency Response | 30 Hz → 30 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 92 dB |
Crossover | |
| Peak Power Handling | 250 watts |
| A/V Receiver Crossover Settings | Small (60 Hz) |
