Product Dimensions 23.75"h x 5.88"w x 3.81"d

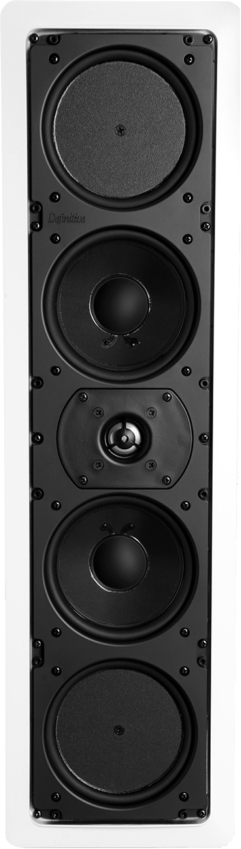

The Reference Line Source III (RLS III) is an enclosed full range loudspeaker engineered for flush mount in-wall installation. It features a non-resonant sealed medite (a dense wood product) enclosure to deliver the tight, detailed bass and uncoloured midrange of audiophile free-standing speakers in every installation.Read More
The performance of open back built-in speakers will vary depending on the nature of the wall/ceiling cavity behind the speaker. But Definitive Reference speakers with integrated enclosures sound superb every time. Rotating dogleg clamps make the RLS III easy to install in either new or existing construction and provide secure, non-resonant mounting for ultimate audiophile performance free of vibrations and buzzes.
Two 5-1/4 inch cast basket drivers and 5-1/4 inch pressure-coupled Low Bass radiators for impressive deep bass with high impact punch
Integrated wood enclosure ensures consistent high performance every time
One 1 inch Pure aluminum dome tweeter
Installs in either new or existing construction applications
Available individually
White Finish
General Specs | |
| Color | White |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Width (in.) | 5.88 |
| Depth (in.) | 3.81 |
| Width (cm) | 14.9352 |
| Depth (cm) | 9.6774 |
| Height (in.) | 23.75 |
| Height (cm) | 60.325 |
| Product Weight (lbs.) | 14.5 |
| Product Weight (kg) | 6.525 |
| Weight Kilogram | 7.257472 |
| MPN | UDPA |
Specifications | |
| Speaker Type | In-Ceiling Speaker |
| Sold As | Each |
| colour/Finish | White |
| Availability | US |
| Weight | 14.5 lbs (6.58 kg) |
| Shipping Cartons | 30" (76.2 cm) h x 9.5" (24.13 cm) w x 9" (22.86 cm) d |
| Shipping Weight | 16 lbs (7.26 kg) |
| Recommended Amplification | 10 – 325 watts |
Driver Complement | |
| Tweeter | (1) 1" (2.54 cm) d (Round) - Tweeter |
| Mid/Woofer | (2) 5.25" (13.34 cm) d (Round) - Mid/Woofer |
| Bass Radiator | (2) 5.25" (13.34 cm) d (Round) - Bass Radiator |
In-Wall Mount | |
| Shape | Rectangle |
| Dimensions | 23.75" (60.33 cm) h x 5.88" (14.94 cm) w |
| Clearnace Required for Mounting Dogs (add to each side of cutout) | 0.88" (2.24 cm) |
Inputs | |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - Gold-Plated |
Audio Quality | |
| Total Frequency Response | 24 Hz to 30 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 92 dB |
Crossover | |
| A/V Receiver Crossover Settings | Small (40 Hz) |
Warranty | |
| Cabinet Warranty | 5 Years |
| Drivers Warranty | 5 Years |
| Original Purchaser Only | Yes |
Included Accessories | |
| Wall Mounting Template | 1 |
| Paint Mask | 1 |
| Paintable Grille | 1 |
| Self Adhering Foam Gasket | 1 |
