Product Dimensions 83.56"h x 23.75"w x 23.31"d

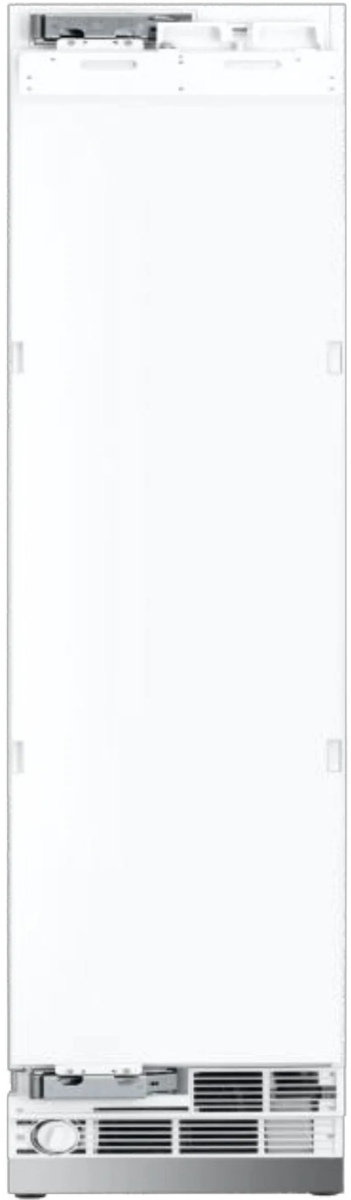

Elica's 24" Built-In Refrigerator Column, boasting a spacious 12.5 Cu. ft capacity, is the perfect fusion of performance and elegance. Designed for true integrated installation, it offers a seamless look with a 90° flush hinge opening and 3D door adjustment for flawless panel alignment.Read More
Silent strength for perfect preservation. A speed-control motor reduces exterior sound levels while offering high ventilation performance to keep the interior temperature and dampening any possible vibration that could disturb the preservation of the wine or beverages.
Redefining space efficiency in modern kitchens. This feature allows easy accommodation of larger items while ensuring their security, ideal for any modern kitchen. The lower drawer is efficiently designed to maximize storage usage.
Mantain temperature while saving energy Sustainable and environmentally friendly: Eco-Mode will maintain optimum interior temperature while saving energy consumption by turning the lights OFF.
Effortless accessibility meets modern design versatility. Elica's articulated hinge is ideal for maximizing accessibility and usability in modern kitchen designs, offering versatility and efficiency in everyday use. It enables the refrigerator to have a zero clearance built in installation and a smooth and effortless movement, allowing doors or panels to pivot or swing open with ease.
General Specs | |
| Color | Custom |
| Color/Finish Name | Panel Ready |
| Door Color | Custom |
| Handle Color | Custom |
| Fingerprint Resistant Finish | No |
| Type of Refrigerator | Column Refrigerator |
| Installation Type | Built-In |
| Depth Type | Counter Depth |
| Number of Doors | 1 |
| Total Capacity (cu. ft.) | 12.5 |
| Defrost Type | Frost Free |
| Door Panel Type | Panel |
| Door Swing Option | Right Hinge |
| Ice/Water Dispenser | Yes |
| Dispenser Location | Internal |
| Refrigeration General Features | Sabbath Mode, LED Light, Digital Temperature Control, Interior Light, Door Alarm |
| Refrigeration Dispenser Features | Water Filtration |
| Custom Panel Ready | Yes |
| Garage Ready | No |
| Zero Clearance Hinge | Yes |
| Smart Compatible | No |
| Commercial Use Approved | No |
| Appliance Fit Width (in.) | 24 |
| Appliance Fit Width (cm) | 60.69 |
| Width (in.) | 23.75 |
| Width (cm) | 60.2742 |
| Depth (in.) | 23.31 |
| Depth (cm) | 61.595 |
| Depth w/Door Open 90 Degrees (in.) | 55.3125 |
| Depth With Door Open 90 Degrees (cm) | 140.494 |
| Depth Less Door (in.) | 22.594 |
| Depth Less Door (cm) | 57.389 |
| Depth Excluding Handles (in.) | 24.25 |
| Depth Excluding Handles (cm) | 59.2074 |
| Depth Including Handles (in.) | 28.25 |
| Depth Including Handles (cm) | 71.755 |
| Height (in.) | 83.56 |
| Height (cm) | 212.2424 |
| Overall Height (in.) | 83.56 |
| Overall Height (cm) | 212.2424 |
| Product Weight (lbs.) | 308.6 |
| Product Weight (kg) | 140 |
| Weight Kilogram | 169 |
| Collection | Dolomite |
| Series | Dolomite |
| ENERGY STAR Certified | Yes |
| ADA Compliant | No |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 2.0 |
