Product Dimensions 11.94"h x 28.5"w x 15.75"d
Scanno available in 28”, 34” and 46” sizes and with only 15 5/8” depth make it perfect to discreetly mount it inside any slim cabinet. While having a powerful performance of 600 and 1200 CFM blower for extraordinary ventilating power.Read More

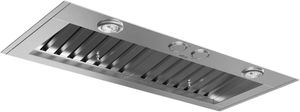

True professional-grade performance with our stainless steel insert range hood, with slim 15" depth, ensuring optimal functionality and style in your kitchen.
The All-In-One design avoids the need to purchase a stainless steel liner. Scanno comes equipped with ergonomic rotating knob controls which discreetly recess out of sight when not in use and long-life LED lighting illuminates the cooking surface. Damp location installation approved.
Unleash high performance with special features! Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s.
Stay cool under pressure, adjust temperature automatically. Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
Silent innovation, redefine tranquility. An exclusive sound-deadening technology that effectively reduces sound levels by over 35%.
Elevate your kitchen with refined elegance. Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
Effortless grease removal with stainless steel filters. Professional grade stainless steel baffle filters designed for high airflow cooking, trap volumes of grease which are collected in trays for easy removal and cleaning.
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| Ventilation Type | Convertible (Both) |
| Ventilation Direction | Vertical |
| Vent Location | Top |
| Grease Filter Type | Stainless Steel |
| Duct Size (in.) | 6" Round |
| Bulb Type | LED |
| Sones Rating | 1.7 - 8.5 |
| Noise Level (Sones) | Standard - (High), Moderate - (Medium), Quiet - (Low) |
| Maximum CFM | 1200 |
| Range Hood Features | Heat Sensor, Light, Removable Grease Filter |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 4 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 28 |
| Appliance Fit Width (cm) | 73 |
| Width (in.) | 28.5 |
| Width (cm) | 72.39 |
| Height (in.) | 11.94 |
| Height (cm) | 30.33 |
| Depth (in.) | 15.75 |
| Depth (cm) | 40.01 |
| Product Weight (lbs.) | 37.26 |
| Product Weight (kg) | 16.9 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Scanno |
| Series | Pro Series |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Voltage | 120 |
| Frequency | 60 |
