Product Dimensions 6.7"h x 20.5"w x 17.7"d
Bring the ultimate 4K experience to your DIY home theater with the Epson® Home Cinema 4010 4K PRO-UHD projector. Epson 4K PRO-UHD projectors use our proprietary, advanced pixel-shifting resolution-enhancement technology to display native 4K content. Wide colour Gamut, HDR High Dynamic Range and 100% Balanced colour Brightness deliver an exceptional 4K experience. Show movies, sports and games the way they were meant to be seen — on the big screen, with bright, full colour; stunning resolution; and no rainbow effect. It’s an exceptionally immersive viewing experience that your friends and family will love.Read More
Delivers an amazing 4K UHD experience with advanced pixel-shifting resolution-enhancement technology for your DIY home theater
2,400 lumens of colour and 2,400 lumens of white brightness for vibrant, rich colour
Full 10-bit colour output2 and a contrast ratio up to 200,000:1 deliver an extraordinary range of colour and detail in both bright and dark scenes
For powered focus, 2.1x zoom, up to ± 96% vertical and up to ± 47% horizontal lens shift, and 10 preset positions
Sophisticated parallel pixel processing and a state-of-the-art 3-chip architecture deliver amazing colour accuracy, colour brightness and colour gamut
Delivers 100% of the 3-dimensional DCI-P3 colour gamut4, the digital cinema standard, with 50% wider colour gamut than Rec. 709
Overview
Smooth, Crisp Images and Transitions — 12-bit digital colour processing chip with Frame Interpolation and proprietary Advanced Motion Control
Epson’s Advanced Projection Lens — displays a bright, uniform image with virtually no hot spots or chromatic aberration
No colour Wheel — images are free from any distracting rainbow effect; balanced colour and white brightness means no white segments
Delta Level colour Accuracy — low Delta E, for extremely accurate colour reproduction
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay™ Transport Partner

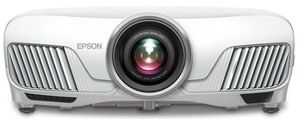

Home Cinema 4010 Projector
Power cord
Two HDMI cable clamps
Remote control with AA batteries
Quick Setup Guide
General Specs | |
| Product Weight (lbs.) | 24.7 |
| Depth (in.) | 17.7 |
| Width (in.) | 20.5 |
| Height (in.) | 6.7 |
| Lamp Life | 5000 |
| MPN | V11H932020 |
| Viewable Screen Size (in.) | 300" |
| Projector Brightness | 2400 |
| Product Weight (kg) | 11.20 |
| Width (cm) | 52.07 |
| Height (cm.) | 17.02 |
| Depth (cm.) | 44.96 |
Specifications | |
| Projection System | Epson 3LCD, 3-chip technology |
| Projection Method | Front / Rear / Ceiling mount |
| Driving Method | Poly-silicon TFT Active Matrix, 0.74"-wide panel |
| colour Brightness- colour Light Output | 2400 lumens |
| White Brightness- White Light Output | 2400 lumens |
| Aspect Ratio | 16:9 widescreen (4:3 resize, 16:10 resize); Compatible with 4:3 with Normal, Full or Zoom Modes |
| Native Resolution | 4K Enhancement1 (1920 x 1080 x 2); Max. Resolution: 4096 x 2160 |
| Lamp Type | 250 W UHE |
| Lamp Life | Up to 5,000 hours (ECO Mode); up to 4,000 hours (Medium Mode); up to 3,500 hours (High Mode) |
| Throw Ratio Range | 1.35 – 2.84 |
| Size- Projected Distance | 50" – 300" |
| Keystone Correction | Vertical: ±30 degrees (Manual) |
| Contrast Ratio | Up to 200,000:1 |
| colour Processing | Full 10-bit (partial 12-bit) |
| colour Reproduction | Full-colour (up to 1.07 billion colours) |
General | |
| Operating Temperature | 41 ° to 95 °F (5 ° to 35 °C) |
| Weight | 24.7 lb |
| Security | Kensington Security Lock Port |
Projections Lens | |
| Type | Powered focus/optical zoom/lens position |
| F-Number | 2.0 – 3.0 |
| Focal Length | 22.5 mm – 46.7 mm |
| Zoom Ratio | 1.0 – 2.1 |
| Lens Shift | Vertical: ±96; Horizontal: ±47 |
| Lens Cover | Powered, Slide Lens Shutter |
Other Home Projector | |
| Cinema Filter | Automatically adjusts to colour mode: (On: Cinema, Digital Cinema; Off: Natural, Black & White Cinema, Bright Cinema, Dynamic, 3D Dynamic, 3D Cinema) |
| Auto Iris | Automatically adjusts to video source: Off/On: High-speed or Normal, 2D and 3D mode |
| Super Resolution | 2D and 3D |
| Terminal Inputs | 1x HDMI® (HDCP 2.2); 1x HDMI (HDCP 1.4); 1x USB Type A (for optical HDMI cable 300 mA max. power supply only); 1x USB (for wireless and firmware); 1x Mini USB (service only); 1x LAN (RJ-45); 1x Computer/D-sub 15 pin ; 1x RS-232c (D-sub 9-pin); Trigger out (3.5 mm mini-jack)12 V DC, 200 mA maximum |
| Computer Compatibility | PC, Mac® |
Projector Details | |
| Display Performance | 4K/UHD Compatible, HDR, 3 dimensional DCI-P3 colour gamut4, 4K Enhancement1, 1080p; HD, 2D, 3D, 2D-to-3D conversion, Picture-in-Picture (2D only), Frame Interpolation (1080p, 24 Hz) (2D and 3D) Output Configuration: (1920 x 1080 x 2) x 3 LCD chips |
| colour Modes | 2D: Dynamic, Bright Cinema, Natural, Cinema, Digital Cinema, Black & White Cinema; 3D: Dynamic, Cinema |
| Fan Noise | 20 dB – 31 dB |
Projector Dimensions | |
| Including Feet | 20.5" x 17.7" x 6.7" (W x D x H) |
Remote Control | |
| Features | Front and rear directional |
| Operating Distance | 32 feet (10 meters) |
| Operating Angle | Front: Right/Left: ± 30 degrees, Upper/Lower: ± 30 degrees; Rear: Right/Left: ± 30 degrees, Upper/Lower: + 10 ± 70 degrees |
Power | |
| Power Power Supply Voltage | 100 – 240 VAC ± 10%, 50/60 Hz |
| Power Consumption | 373 W (High Mode), 283 W (ECO Model) |
