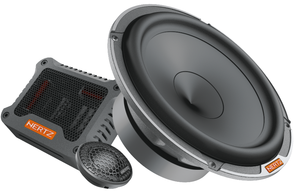

Hertz Mille MPK 1650.3 PRO Car Audio Speakers System

Product Overview

The MP 165P.3 woofer electroacoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The voice coil with a generous 14 mm height, has a nominal 3 Ω impedance in addition to an increased power handling. These features provide the ability to maximally exploit the power of the Hertz HCP and HDP amplifiers as well as all the 2 Ω stable electronics. The ferrite 95 mm diameter magnet enables a +/-4.5 mm voice coil linear excursion, ensuring utmost control at all times. The Boundary Free Surround moves a bigger amount of air, and the V-cone® profile improves the offaxis dispersion, the real in-car listening condition. The sophisticated aluminium alloy basket neutralizes the undesired vibrations.

The crossover MPCX 165.3 creates the optimal tone balance between the MP 28.3 tweeter and MP 165P.3 woofer. It features bi-metallic capacitors with polyester dielectric, for maximum acoustic transparency and air wound inductors built on pure copper wire with up to 1mm diameter eliminating saturation. It also mounts wire-wound type resistors with low parasite inductance. The two positions Hi-Contour control provides the ability to fine tune the system frequency response optimizing it according to the different speakers positions. Most of all, the listeners can achieve their favourite sound thanks to the three-position control for the tweeter emission level with 2 dB steps (+2/0/-2dB) attenuation.

Power Handling - Peak W: 250

Power Handling - Continuous W: 125

Impedance Ω: 3
