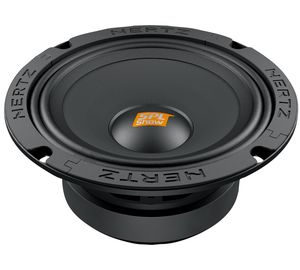

The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances.Read More
The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Size mm (in.): 165 (6.5)
Power Handling - Peak W: 400
Impedance Ω: 4
General Specs | |
| Impedance | 4 Ohms |
| Car Speaker Size | 6.5 |
| Mounting Hardware Included | Yes |
| Water Resistant | Yes |
| RMS Power Handling (Watts) | 200 |
| Peak Power Rating (Watts) | 400 |
| Shallow Mount | No |
General | |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Peak W | 400 |
| Impedance Ω | 4 |
| Frequency response Hz | 100 ÷ 10k |
| Sensitivity dB SPL | 97 |
| Voice coil Ø mm (in.) | 38 (1.5) |
| Magnet | High density flux ferrite |
| Cone/Dome | Ultra light pressed paper |
