JBL® CONCEAL C86 8" Gray Invisible Speaker

JBL

Model #:

JBLC86

JBL® CONCEAL C86 8" Gray Invisible Speaker-0
JBL® CONCEAL C86 8" Gray Invisible Speaker-1
JBL® CONCEAL C86 8" Gray Invisible Speaker-2
JBL® CONCEAL C86 8" Gray Invisible Speaker-3

At a Glance

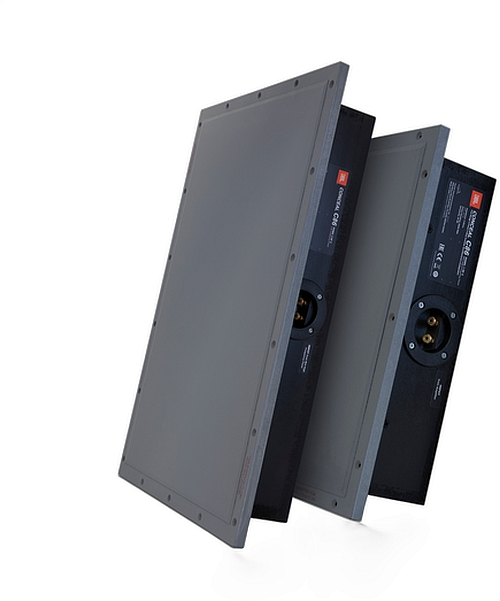

The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel. Built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.Read More

$3,600.00

Get to know this product.

Product Overview

Product Overview

Two-piece design with 8-inch (200mm) LF panel and separate five-element MF/HF panel

Proprietary FidelityGlass™ acoustic panel and compression molded baffle.

Custom designed transducers with JBL premium acoustic crossover network.

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces

Loudspeaker system installs like a standard drywall patch

Paintable surface can also be custom finished for complete invisibility

C12PCB (for MF/HF panel) for C22PCB (for LF panel) pre-construction boards (sold separately).

Useful Documents
Quick Start Guide
Conceal PCB Specification Sheet
Specification Sheet
Specifications

General Specs

ColorGray
Color/Finish NameGray
RMS Power Handling (Watts)200
Frequency Response45 Hz – 20 kHz
Impedance4 ohm
Sensitivity84
Mounting Hardware IncludedNo
Bi Amp InputsNo
Speaker Connector TypeBinding Posts
Enclosure TypeSealed, with wooden back-box
Video ShieldedNo
Outdoor ApprovedNo
WaterproofNo
Water ResistantNo
Dust ResistantNo
WirelessNo
Wifi CapableNo
Bluetooth CapableNo
Smart CompatibleNo
Airplay CapableNo
Built-in MicrophoneNo
Number of Speakers1
Weight Kilogram18.82
Made In CanadaNo
CollectionConceal
SeriesConceal
Manufacturer Warranty5 Year

Specifications

MF/HF Panel Cut-out Dimensions12” H x 16” W (305mm H x 406mm W)
MF/HF Panel Mounting Depth3-3/8-inches (86mm)
Low Frequency Panel Dimensions22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)
LF Panel Cut-out Dimensions22-1/8” H x 16” W (562mm H x 406mm W)
LF Panel Mounting Depth3-3/8-inches (86mm)
Product Weight (MF/HF Panel)12.9 lbs (5.9kg)
Product Weight (LF Panel)20.0 lbs (9.1kg)
