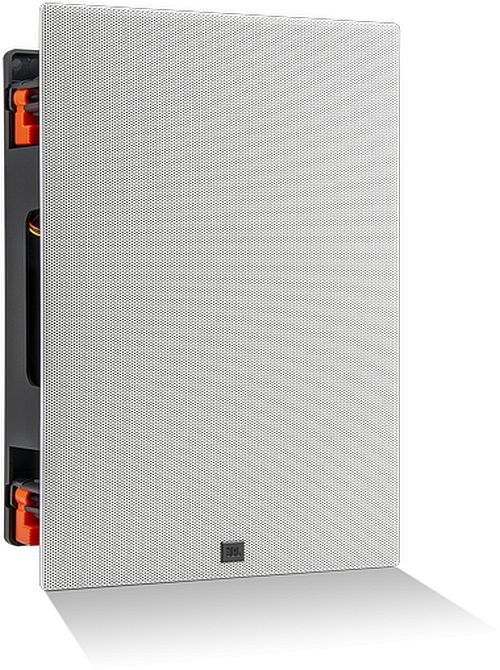

For more powerful bass, the Studio 8IW features an 8" (203mm) Polyplas® cone woofer and a 1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide for more impact from front, side, and rear channels. The Dog Leg mounting system allows for easy installation and the zero bezel grilles make the 8IW visually discrete so they blend into the walls seamlessly.Read More
1" (25mm) Compression Driver with High-Definition Imaging (HDI™) waveguide
8" (203mm) Polyplas® cone woofer
High frequency level adjustment and Low Frequency boundary compensation
Premium air-core inductors and mylar capacitor crossover network components
Dog leg installation system for quick and easy installation
Zero bezel metal grille installs flush to wall or ceiling for a clean inconspicuous appearance
General Specs | |
| Color | Black |
| Color/Finish Name | Black |
| Speaker Type | In-Wall Speakers |
| RMS Power Handling (Watts) | 60 |
| Frequency Response | 43Hz - 20kHz |
| Impedance | 6 ohm |
| Sensitivity | 93 |
| Mounting Hardware Included | No |
| Bi Amp Inputs | No |
| Video Shielded | No |
| Outdoor Approved | No |
| Waterproof | No |
| Water Resistant | No |
| Dust Resistant | No |
| Wireless | No |
| Wireless Rear Speakers | No |
| Wifi Capable | No |
| Bluetooth Capable | No |
| Smart Compatible | No |
| Airplay Capable | No |
| Built-in Microphone | No |
| Number of Speakers | 1 |
| Cut Out Width (in.) | 12.5 |
| Cut Out Width (cm) | 31.75 |
| Cut Out Height (in.) | 8.7 |
| Cut Out Height (cm) | 22.1 |
| Collection | Studio 8IW |
| Series | Studio 8IW |
Specification | |
| Grille Dimensions (HxW) | 9.9" x 13.7" (251mm x 349mm) |
| Mounting Depth | 3.74in (95mm) |
