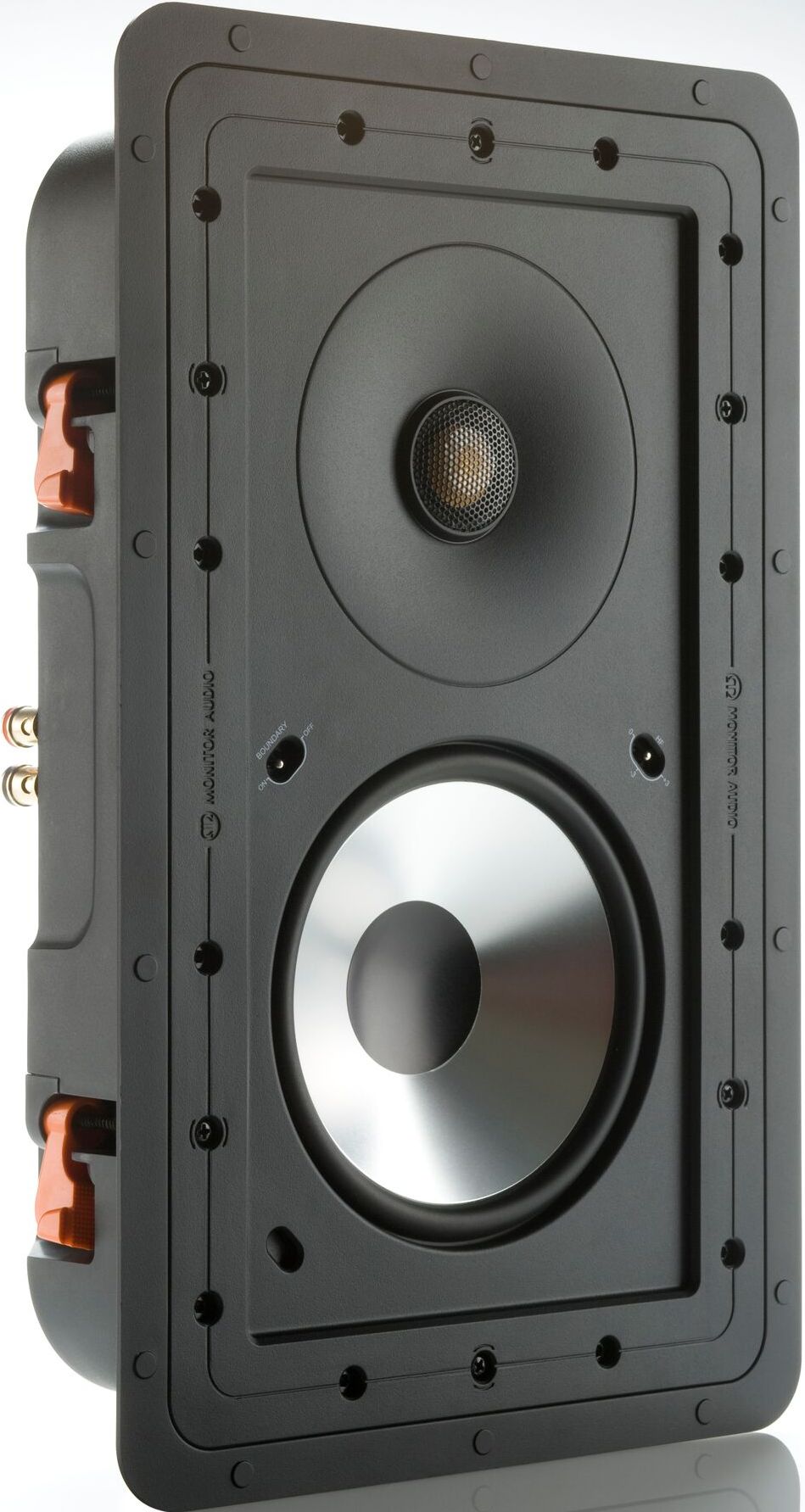

The CP-WT260's pivoting C-CAM tweeter is joined by a 6" C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.Read More
Pivoting C-CAM Gold Dome tweeter and C-CAM bass driver.
High overall efficiency.
High frequency level adjustment (+/-3 dB).
Boundary compensation controls.
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | Black |
| Speaker Type | In-Wall Speakers |
| RMS Power Handling (Watts) | 65 |
| Frequency Response | 65 Hz - 25 kHz |
| Impedance | 6 ohms |
| Sensitivity | 88 |
| Number of Speakers | 1 |
| Product Weight (lbs.) | 7.25 |
| Manufacturer Warranty | Limited Lifetime |
Additional Specifications | |
| Frequency Response | 65 Hz - 25 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88 dB |
| Maximum SPL | 106.9 dBA |
| Power Handling (RMS) | 65 W |
| Recommended Amplifier Requirements | 20 - 65 W |
| Crossover Frequency | 2.6 kHz @ 12 dB / Octave |
| Drive Unit Complement | 2-Way, 6" C-CAM cone bass driver, 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3 dB / 0 dB / -3 dB), Boundary Compensation Switch |
| Overall Dimensions (H x W x D) | 415 x 262.5 mm (16 5/16 x 10 5/16") |
| Overall Depth (Including Grille) | 102 mm (4") |
| Cut-Out Dimensions | 381 x 228 mm (15 x 9") |
| Mounting Depth | 96 mm (3 3/4") |
| Fixing Type | 6 position Tri-Grip dog leg fixings |
| Construction Material | Mineral Filled ABS Plastic (RoHS2 Compliant) |
| Weight | 3.31 kg (7 lb 4 oz) |
| Pre-Construction Bracket | WB8 Pre-Construction Bracket (Green) |
| Back Box | WCBOX-L |
