Monitor Audio CS180 Round In-Ceiling Speaker
At a Glance
The CS180 in-ceiling model marries our 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.Read More
Call for Best Price
The CS180 in-ceiling model marries our 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.Read More
Offering superlative dynamic delivery in a super-discreet format
Delivers fabulous full-range sound with stealthy versatility

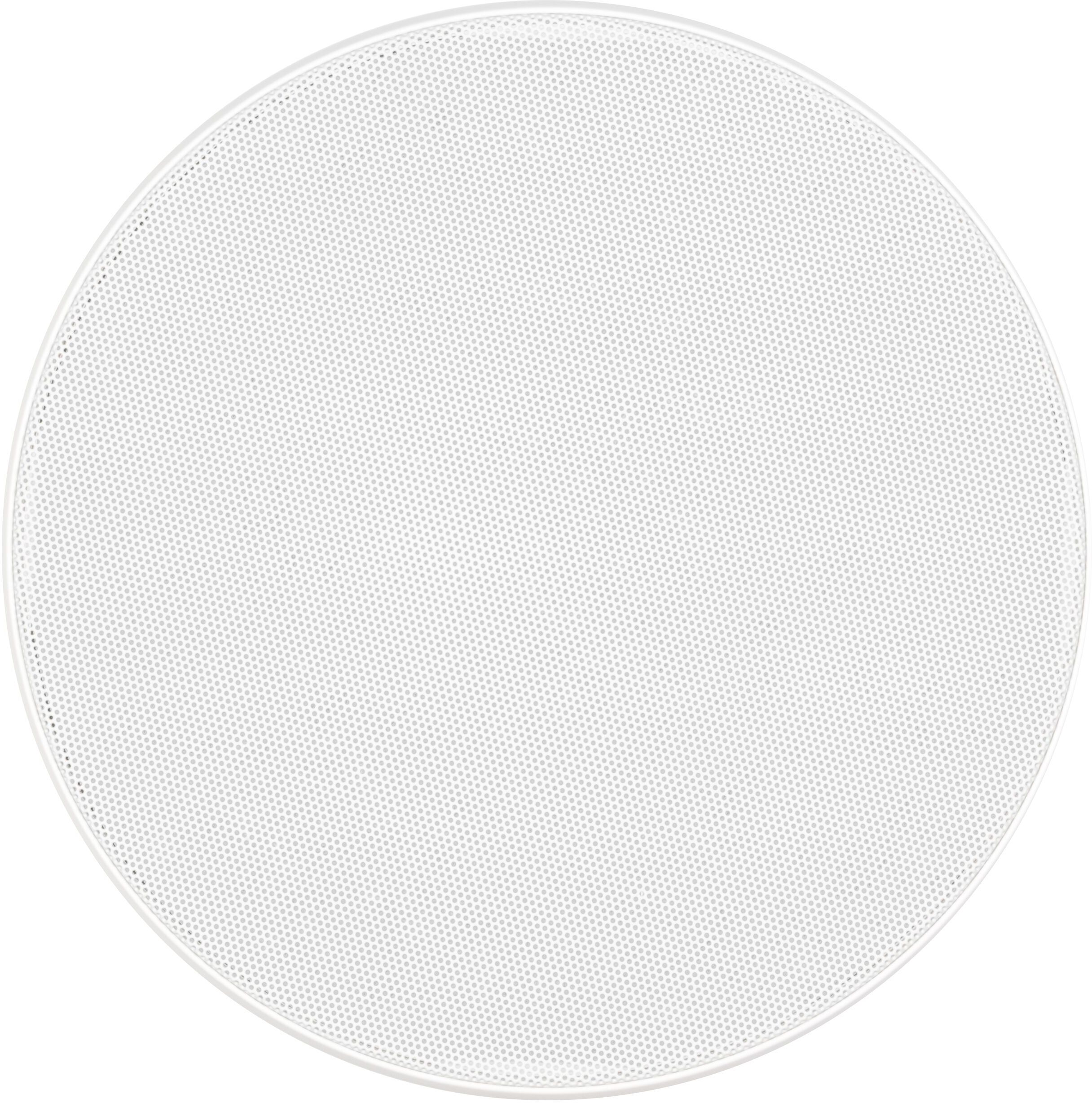

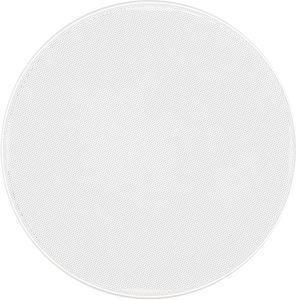

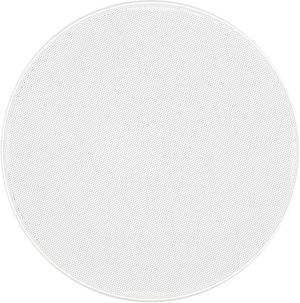

Round Grille
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | Black, Orange |
| Speaker Type | In-Ceiling Speakers |
| RMS Power Handling (Watts) | 120 |
| Frequency Response | 48 Hz – 30 kHz |
| Impedance | 6 ohms |
| Sensitivity | 90 |
| Number of Speakers | 1 |
| Product Weight (lbs.) | 6 |
| Manufacturer Warranty | Limited Lifetime |
Additional Specifications | |
| Frequency Response | 48 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 110.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 1 x 8" MMP II cone bass driver., 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter |
| Acoustic Configuration | 2-way |
| Overall Dimensions (Including Grille (H x W)) | Round: 251.7 mm (9 15/16") |
| Mounting Depth | 99.4 mm (3 15/16”) |
| Cut-Out Hole Diameter | 213 mm (8 3/8”) |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Connection | Gold plated ‘push’ type terminals |
| Grille Attachment | Magnetic |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.72 kg (6 lb) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Back Box | CCBOX-R | CMBOX-R |
