The Gold FX has been designed to immerse the listener in a compelling surround sound experience. Monitor Audio’s premium driver technology ensures an unforgettable audio performance.Read More

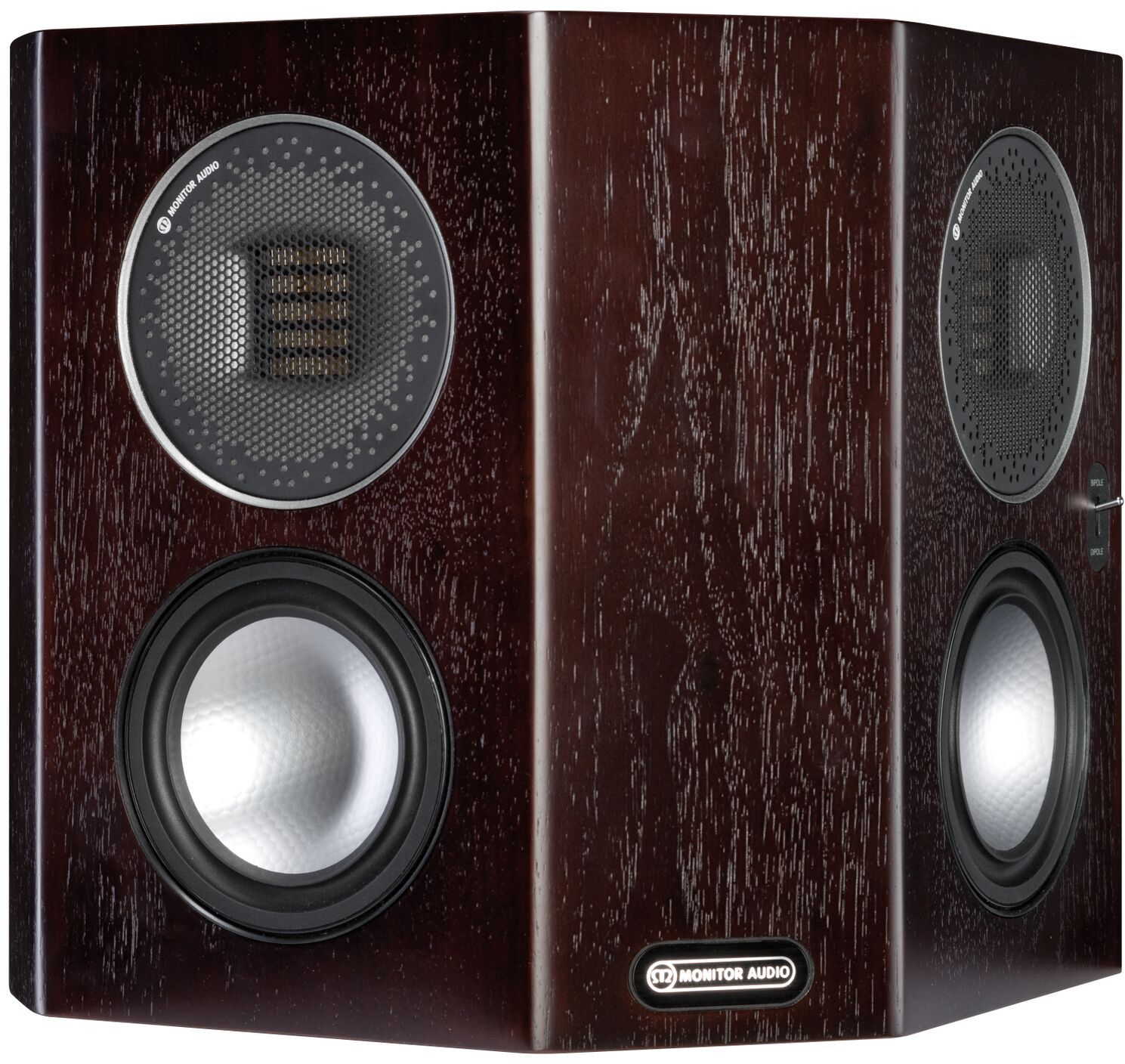

Nothing enhances your home cinema experience like a dedicated surround sound speaker. A compact, discreet design, yet able to pack in two MPD high-frequency transducers and two 4" (100 mm) mid/bass C-CAM drivers, Gold FX can be flush-mounted and can function in either bi-pole or di-pole modes at the flick of switch.
Monitor Audio are masters of the effects speaker, and the Gold FX represents the state of the art.
Discreet design with flush wall placement – recessed terminations
Angled baffles for optimal dispersion
Sealed cabinet – for accurate performance when installed in restricted voids or close to a wall
Switchable di-pole/ bi-pole configuration – handed pairs
Dual MPD high frequency transducer – articulate, extended high frequencies, yet supremely smooth
Dual 4" Bass/Mid-range drivers with C-CAM cone technology
Pureflow silver-plated OFC copper internal cabling – highest quality transfer through the signal chain
Single-bolt-through driver technology – providing increased bracing strength, rigidity and driver/baffle de-coupling
High-quality crossovers with premium-grade polypropylene film capacitors used throughout
Bespoke magnetic grilles – clean visual styling, virtually acoustically transparent
Dedicated flexible bracket included for easy installation
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | Brown |
| Color/Finish Name | Walnut |
| Speaker Type | On-Wall Speakers |
| RMS Power Handling (Watts) | 100 |
| Frequency Response | 60 Hz – 50 kHz |
| Impedance | 4 Ohms |
| Sensitivity | 88 |
| Number of Speakers | 2 |
| Manufacturer Warranty | 5 Year |
Additional Specifications | |
| System Format | 2-way |
| Frequency Response (-6 dB) | 60 Hz – 50 kHz |
| Sensitivity (1W@1M) | 86 dB |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance | 3.7 Ohms @ 3 kHz |
| Maximum SPL | 109 dBA (Pair) |
| Power Handling (RMS) | 100 W |
| Recommended Amplifier Requirements | 30 – 100 W |
| Bass Alignment | Sealed cabinet |
| Crossover Frequency | 2.5 kHz |
| Drive Unit Complement | 2 x 4" C-CAM mid-range driver, 2 x MPD high-frequency transducer |
| External Dimensions (Including Grille and Terminals (H x W x D)) | 270 x 341.8 x 160 mm (10 5/8 x 13 7/16 x 6 5/16") |
| Weight (each) | 6.2 kg (13 lb 10 oz) |
