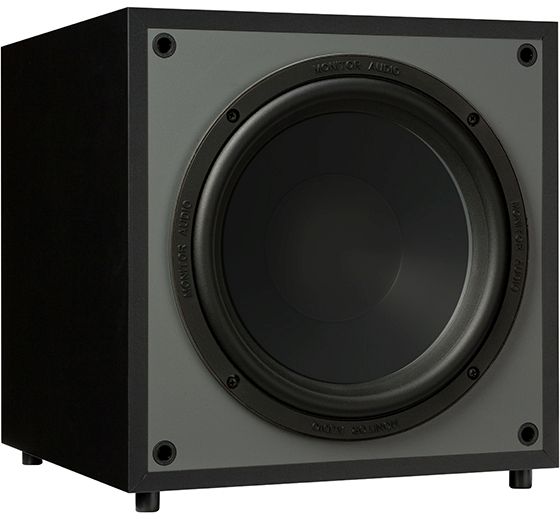

Monitor Audio Monitor W10 Black Powered Subwoofer
At a Glance
Product Dimensions 14.9375"h x 12.625"w x 14.9375"d
Monitor Audio Monitor MRW-10 Black Powered Subwoofer for sale. Shop your authorized Monitor Audio dealer for the best home theater sub deals.Read More
Get to know this product.
Product Overview
Product Overview
The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10" long-throw MMP II bass driver and a rear port that allows optimal output from the powerful on-board 100 W class D power amplifier.
The Monitor MRW-10 boasts an array of features dedicated to optimising a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility.
Monitor MRW-10 Key Features
10" MMP II long throw subwoofer driver
Rigid MDF cabinet with rear porting
Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
Switch mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
DSP processing with all control features and crossover performed in the digital domain
Three pre-set EQ mode settings. Music / Movie / Impact
12 V trigger – provides switching control from AV amp, processor, or home automation control system
18 mm thick MDF construction
This product is now available to use with home theatre design software, The CEDIA Designer.
Useful Documents
Specifications
General Specs | |
| Color | Black |
| Color/Finish Name | Black |
| Speaker Type | Powered Subwoofers |
| Subwoofer Size | 10" |
| RMS Power Handling (Watts) | 220 |
| Frequency Response | 30Hz - 150Hz |
| Firing Direction | Side |
| Enclosure Type | Sealed |
| Phase Switch | Yes |
| Wireless | No |
| Width (in.) | 12.625 |
| Depth (in.) | 14.9375 |
| Height (in.) | 14.9375 |
| Product Weight (lbs.) | 28.14 |
| Manufacturer Warranty | 5 Year Parts & Labor / 2 Year the Electronics |
Additional Specifications | |
| System Format | Rear ported bass reflex cabinet |
| Lower Frequency Limit | 30 Hz (-6 dB) |
| Upper Frequency Limit | Variable 50 – 120 Hz @ 24 dB/Octave |
| Amplifier Output | 100 W RMS |
| Amplifier Classification | Class D with Switch mode PSU |
| Bass EQ Profiles | Music / Movie / Impact |
| Phase Control | 0 – 180° |
| Auto Sensing | >3.5 mV |
| Input Level Requirements | Standby after approximately 15 minutes if no signal sensed |
| Drive Unit Complement | 1 x 10" MMP II long throw driver |
| Input Impedance | >20 K ohms |
| Mains Input Voltage | 110 – 120 Vac – 50 – 60 Hz, 220 – 240 Vac – 50 – 60 Hz. Selectable |
| Fuse Specification | 110 – 120 VAC – T4AL/250VAC, 220 – 240 VAC – T4AL/250VAC |
| Connection | 2 x Stereo RCA, 1 x LFE RCA connection, 12 V trigger (3.5 mm mono mini-jack) |
| External Dimensions (Including Grille and Feet (H x W x D)) | 336 x 320 x 350.6 mm (13 1/4 x 12 5/8 x 13 13/16") |
| Standby Power Consumption | <0.5 W standby |
| Weight | 10.54 kg (23 lb 4 oz) |
