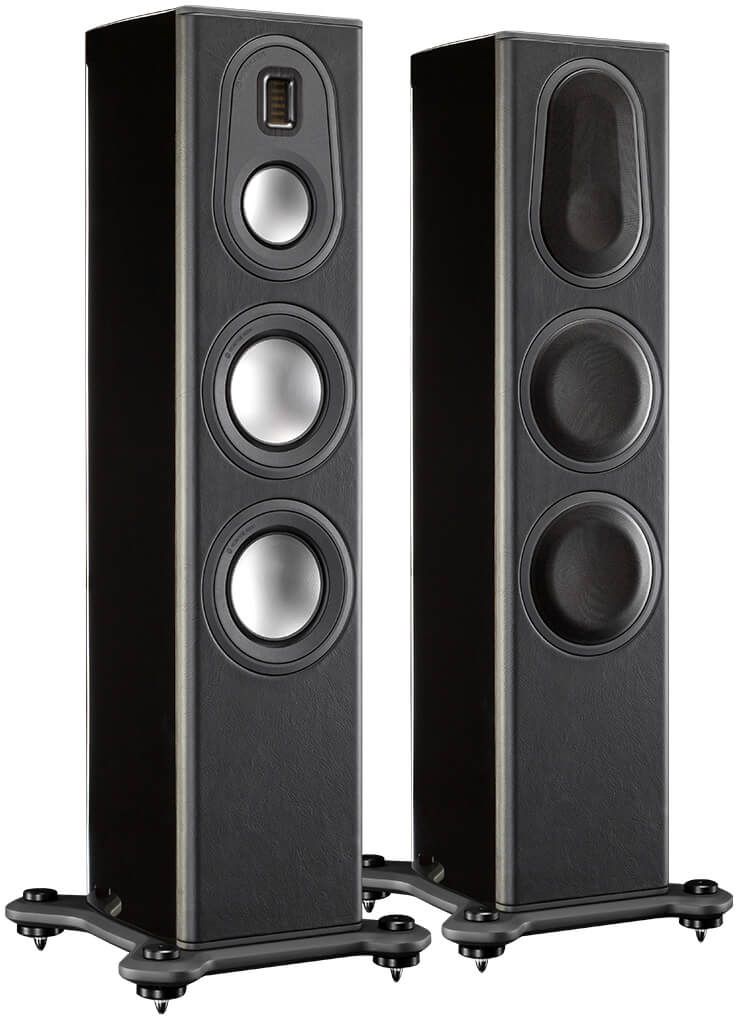

It’s unlikely you’ll discover a more persuasive speaker than the PL100 II in its price class, but compare the floor-standing PL200 II with its smaller sibling and immediately you’ll notice the effect of four drivers in a larger cabinet.Read More
Such is the quality of Platinum II’s engineering that the character of the sound remains powerfully consistent and expressive, but with the addition of a second 6.5” RDT II driver, the PL200 II’s bass has more weight, while its dedicated 4" RDT II midrange driver brings further definition to vocals and strings.
Through the PL200 II, subtle textures are more vividly described and every note rendered with greater authority. It’s a factor of scale. Platinum II’s class-leading accuracy is a given, you simply need to match it with the size of your room.
2 x 6.5" RDT II long throw bass drivers
4" RDT II mid-range driver
MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
2 x HiVe II ports
Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
Bespoke speaker terminals and footings
Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
Bolt through drivers: clearer sound and cleaner aesthetics
Anti-Resonance Composite (ARC) mid-range housings and baffle components: reduced cabinet vibration, purer sound quality
TLE (Tapered Line Enclosure) sealed internal enclosure for mid-range drivers: greater sound accuracy and reduced cabinet vibration
Hand-upholstered front baffle: the very highest quality Inglestone leather supplied by Andrew Muirhead
Individual driver grilles
Finish options: Santos Rosewood or Ebony natural wood veneers with clear gloss piano lacquer, or Piano black gloss lacquer
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | Black |
| Color/Finish Name | Black Gloss |
| RMS Power Handling (Watts) | 250 |
| Impedance | 4 Ohms |
| Number of Speakers | 2 |
| Manufacturer Warranty | 5 Year |
Additional Specifications | |
| System Format | 3 Way — 4 Driver |
| Frequency Response (-6 dB - IEC 268-13) | 35 Hz — 100 kHz |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 117 dBA (pair) |
| Nominal Impedance | 4 ohms (4.0 ohms min. @ 135 Hz) |
| Power Handling (RMS) | 250 W |
| Recommended Amplifier Requirements | 100 — 250 W |
| Cabinet Design | Two HiVe II ports, Sealed mid-range TLE enclosure |
| Drive Unit Complement | 2 x 6 1/2" RDT II long-throw bass drivers, 1 x 4" RDT II mid-range driver, 1 x MPD high frequency transducer |
| Crossover Frequency | MF/HF: 3.9 kHz, LF/MF: 750 Hz |
| External Dimensions (Including Plinth and Terminals) (H x W x D)) | 1015.4 x 380.22 x 407.87 mm (40 x 15 x 16 1/16") |
| External Dimensions (Including Feet and Spikes (H x W x D)) | 1051.7 x 380.22 x 407.87 mm (41 3/8 x 15 x 16 1/16") |
| Weight (each) | 36.08 kg (79 lb 6 oz) |
