Product Dimensions 8.88"h x 22.81"w x 12.88"d
Now the soundstage is complete, the drama can begin. Between PL200 IIs or PL100 IIs in a multichannel AV system, the PLC150 II will imbue dialogue with a natural intimacy while pans and effects remain stable and supremely consistent.Read More

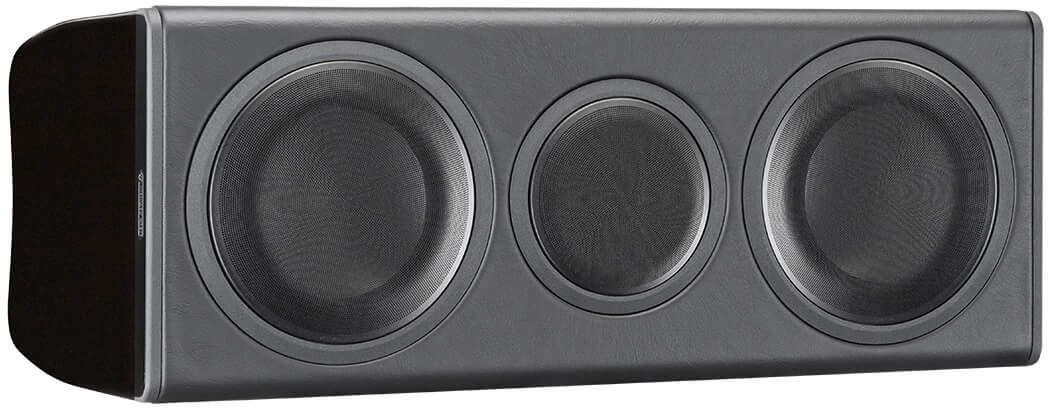

Equipped with a driver configuration of 6.5" RDT II bass driver, 6.5" RDT II bass/mid and MPD Transducer, the PLC150 II will complement its left and right channel counterparts to create a seamless unity of sound, which weaves your senses with every scene.
Film action and music is charged with a new emotional gravity that will prove irresistible.
1 x 6 1/2" RDT II bass driver
1 x 6 1/2" RDT II bass / mid driver
MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
Single rear HiVe II port
Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
Bespoke speaker terminals
Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
Bolt through drivers: clearer sound and cleaner aesthetics
Anti-Resonance Composite (ARC) mid-range housings and baffle components: reduced cabinet vibration, purer sound quality
Hand-upholstered front baffle: the very highest quality Inglestone leather supplied by Andrew Muirhead
Individual driver grilles
Finish options: Santos Rosewood or Ebony natural wood veneers with clear gloss piano lacquer, or Piano black gloss lacquer
Optional dedicated floor stand available
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | Black |
| Color/Finish Name | Platinum Black Gloss |
| RMS Power Handling (Watts) | 200 |
| Impedance | 6 ohms |
| Number of Speakers | 1 |
| Width (in.) | 22.81 |
| Depth (in.) | 12.88 |
| Height (in.) | 8.88 |
| Product Weight (lbs.) | 52.75 |
| Manufacturer Warranty | 5 Year |
Additional Specifications | |
| System Format | 2 1/2 Way – 3 Driver |
| Frequency Response (-6 dB - IEC 268-13) | 45 Hz – 100 kHz |
| Sensitivity (1W@1M) | 89 dB |
| Maximum SPL | 112 dBA |
| Nominal Impedance | 6 ohms (4.5 ohms min. @ 170 Hz) |
| Power Handling (RMS) | 200 W |
| Recommended Amplifier Requirements | 60 – 200 W |
| Cabinet Design | Single rear HiVe II port |
| Drive Unit Complement | 1 x 6 1/2" RDT II bass driver, 1 x 6 1/2" RDT II bass / mid driver, 1 x MPD high frequency transducer |
| Crossover Frequency | MF/HF: 3.0 kHz, LF/MF: 600 Hz (-6dB LF) |
| External Dimensions (Including Plinth and Terminals) (H x W x D)) | 225 x 580 x 326.54 mm (8 7/8 x 22 13/16 x 12 7/8") |
| Weight (each) | 23.98 kg (52 lb 12 oz) |
