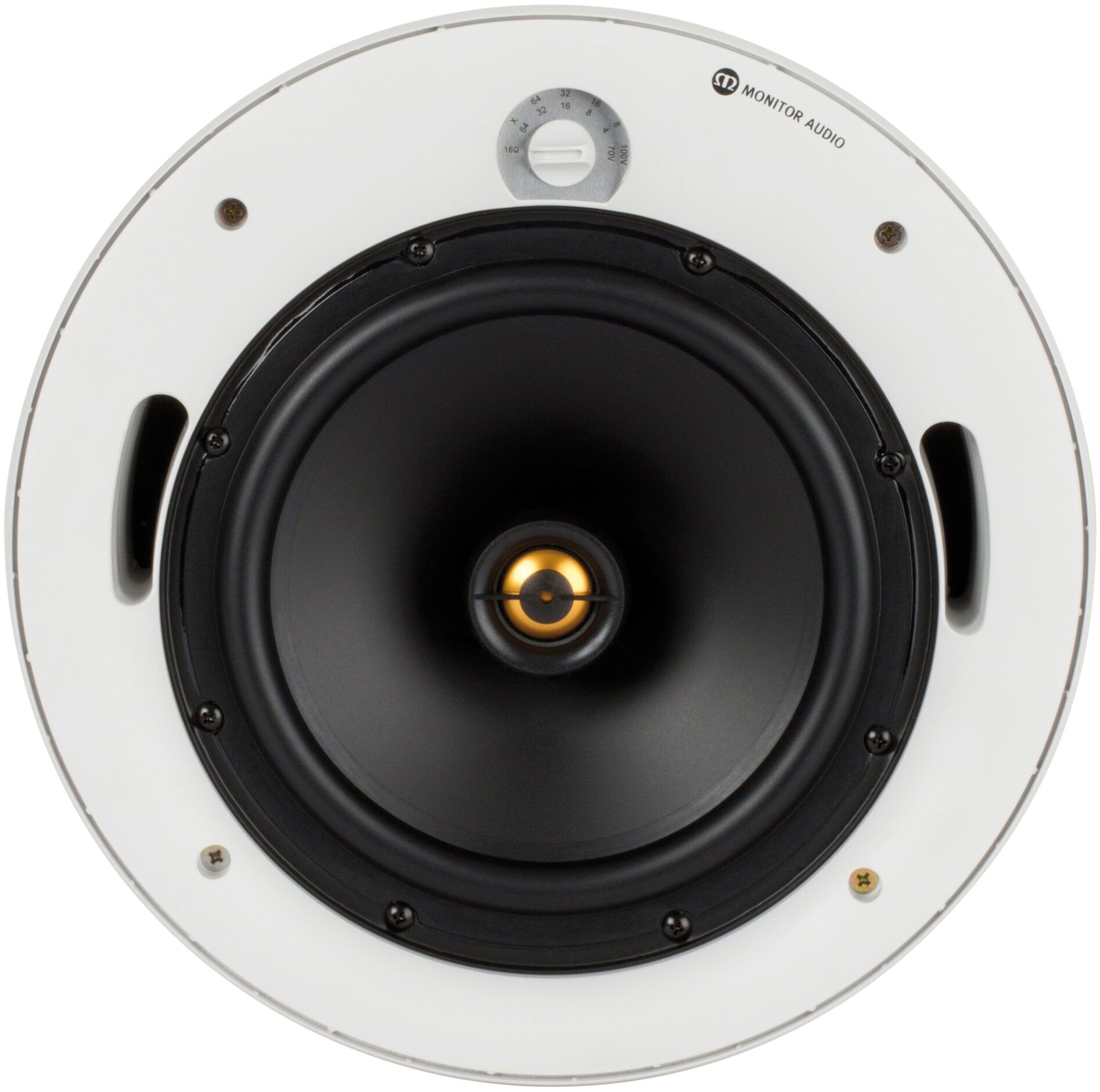

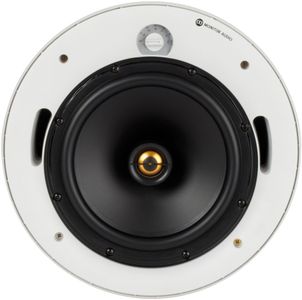

Joining the Pro-65 and Pro-80 in the expanded PRO-IC range, the new professional Pro-80LV 70/100 V line speaker offers similarly stealthy but highly flexible system options for commercial installations.Read More
Reprising many of Monitor Audio’s most acclaimed hi fi design configurations, its 8" MMP II bass driver and signature 1" Gold Dome tweeter deliver high audio quality with excellent speech intelligibility for public address and distributed music applications. The Pro-80LV features an internal matching transformer, providing a 70 V or 100 V input for powering multiple speakers on a single amplifier channel. A 16 ohm switch position offers the flexibility to wire one, two, three or four speakers in parallel per channel. Power taps allow system designers to set maximum SPL in areas such as restrooms and foyers.
Building regulations are satisfied by the Pro-80LV’s fireproof steel back box and secure anchor points while a plug-type connection block ensures easy and reliable system integration with a link out option for ‘daisy chain’ wiring. Combining installation versatility with Monitor Audio’s robust build quality and hi-fi clarity, the slender new Pro-80LV offers the added advantage of trimless aesthetics for an optimum blend of design, performance and value.
Fireproof steel back box and secure anchor points
8" MMP II bass driver
1" Gold Dome tweeter
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | Black, White |
| Speaker Type | In-Ceiling Speakers |
| RMS Power Handling (Watts) | 40 |
| Frequency Response | 65 Hz – 25 kHz |
| Impedance | 16 ohms |
| Sensitivity | 87 |
| Number of Speakers | 4 |
| Product Weight (lbs.) | 8.25 |
| Manufacturer Warranty | 5 Year |
Additional Specifications | |
| Frequency Response | 65 Hz – 25 kHz |
| Nominal Impedance | 16Ω 70V (4,8, 16,32,64 W) 100V (8,16,32,64 W) power selection |
| Sensitivity (1W@1M) | 87 dB |
| Maximum SPL | 103.8 dBA |
| Power Handling (RMS) | 40 W |
| Recommended Amplifier Requirements | 10 — 40 W |
| Drive Unit Complement | 8" MMP II cone bass-mid driver, 1 x 25 mm (1") fabric soft dome tweeter |
| Connection | Screw type plug termination |
| Overall Diameter (Including Grille) | 294 mm (11 9/16") |
| Overall Depth (Including Grille) | 114 mm (4 1/2") |
| Cut-Out Hole Diameter | 266 mm (10 1/2") |
| Mounting Depth | 101.4 mm (4") |
| Fixing Type | 4 position dog leg fixings |
| Construction Material | ABS (UL94 rated, RoHS2 Compliant) Painted steel grille, Steel rear enclosure |
| Weight | 3.76 kg (8 lb 4 oz) |
| Pre-Construction Bracket | CB8-LV Pre-Construction Bracket |
| Other | Fire Rating: UL1480 & UL2043 |
