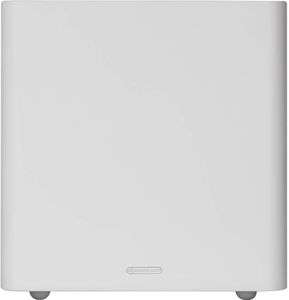

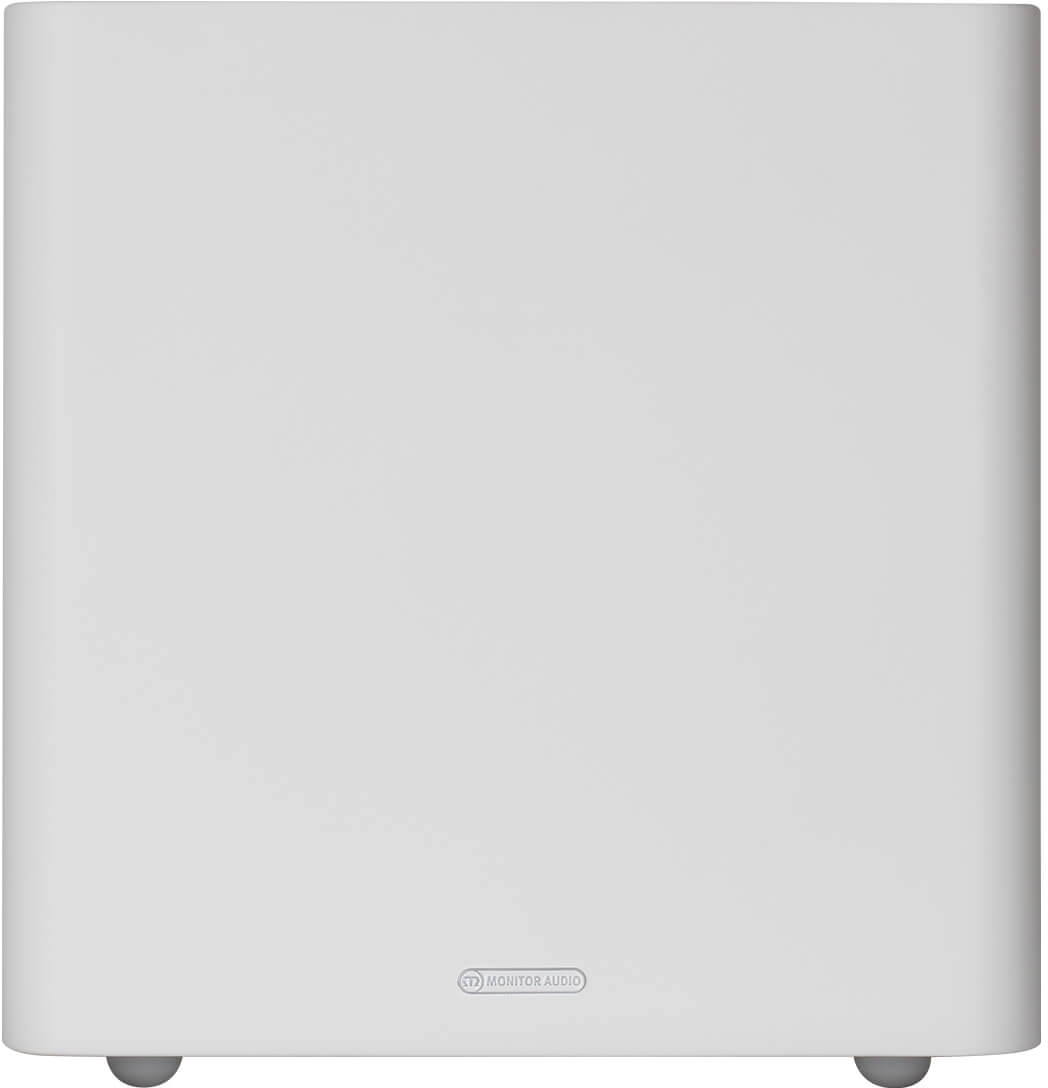

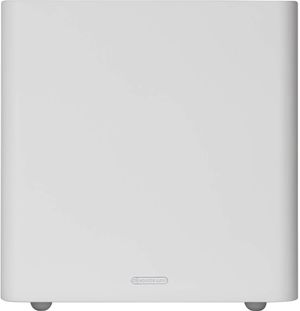

The Radius 390 comprises of colour-coded 10" C-CAM active/ABR drivers, powered by a 200 W Class D amplifier. Enjoy rapid EQ optimisation from Impact, Music and Movie settings, and system automation via the 12 V trigger.Read More
18 mm MDF cabinet construction with internal bracing
Cool-running 200 W Class D amplifier with switch mode power supply (SMPSU)
Twin side-firing 10" C-CAM drivers - one active and one passive ABR
Low pass filter switch – for LFE or Stereo input selection
Power switch with ON – Auto- Off/ trigger settings
Stereo/ LFE RCA inputs
3 x Pre-set EQ settings – Music/Movie/Impact
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | White |
| Color/Finish Name | Satin White |
| Speaker Type | Powered Subwoofers |
| Subwoofer Size | 10" |
| RMS Power Handling (Watts) | 200 |
| Product Weight (lbs.) | 30.25 |
| Collection | Radius 390 |
| Manufacturer Warranty | 5 Year |
Additional Specifications | |
| System Format | Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet |
| Lower Frequency Limit | 30 Hz (- 6 dB) |
| Upper Frequency Limit | Variable 40 – 120 Hz @ 24 dB/Octave |
| Amplifier Output | 200 Watts @ 1% THD+N |
| Amplifier Classification | Class D amplifier with Switch mode power supply (SMPSU) |
| Bass EQ Profiles | Music / Movie / Impact |
| Phase Control | 0 & 180 degrees |
| Auto Sensing | Line Level >3.5mV |
| Input Level Requirements | Standby after approximately 15 minutes if no signal sensed |
| Drive Unit Complement | 1 x 10" (250 mm) C-CAM long throw driver 1 x 10" (250 mm) ABR |
| Input Impedance | > 20 ohms |
| Mains Input Voltage | AC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset) |
| Dimensions (Including Amp and Feet (H x W x D)) | 348 x 330 x 345 mm (13 11/16 x 13 x 12 9/16") |
| Connection | Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack) |
| Trigger Input | 5 - 12v via 3.5mm mono mini-jack socket |
| Power Consumption | 200 Watts / 0.5 Watts in Standby (ErP approved) |
| Weight (unpacked) | 13.76 kg (30 lb 4 oz) |
