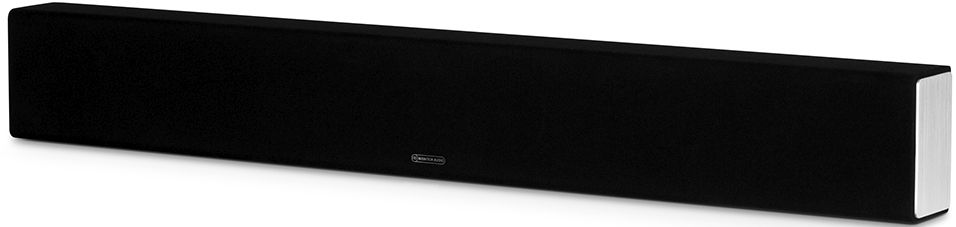

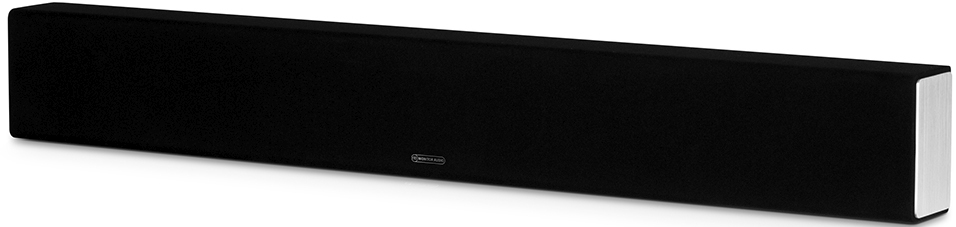

Monitor Audio SB-2 Passive Soundbar
At a Glance
The SB-2 employs individual 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.Read More
Call for Best Price
The SB-2 employs individual 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.Read More
Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.
In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
C-CAM gold dome tweeters per channel
Auxiliary Bass Reflex (ABR) per channel
Three separate driver arrays for left, centre, right channels in a single cabinet
Optional dedicated wall bracket
Integrated Silicon feet provide a secure cabinet-top mounting alternative.
General Specs | |
| Color | Black |
| Speaker Type | Sound Bars |
| RMS Power Handling (Watts) | 100 |
| Frequency Response | 80 Hz - 30 kHz |
| Impedance | 8 ohms |
| Sensitivity | 84 dB |
| Collection | SB-2 |
| Manufacturer Warranty | Limited Lifetime |
Additional Specifications | |
| Frequency Response (-3 dB) | 90 Hz – 30 kHz |
| Sensitivity (1W@1M) | 84 dB |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS) | 40 W |
| System Power Handling (RMS) | 100 (High pass filter set to 100 Hz) |
| Recommended Amplifier Requirements | 30 — 100 W |
| Crossover Frequency | 80 — 120 Hz |
| Maximum SPL | 104 (108.8 all channels driven) dBa |
| Bass Alignment | 3 x Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | 3 x 4" (100 mm) C-CAM cone bass/mid driver |
| Cabinet Dimensions: (H x W x D) (Including Feet) | 147 x 1107 x 93 mm (5 13/16 x 43 9/16 x3 11/16") |
| External Dimensions (Including Bracket (H x W x D)) | 145 x 1107 x 100 mm (5 11/16 x 43 9/16 x 3 15/16") |
| Bracket | BSB |
| Weight | 7.64 kg (16 lb 12 oz) |
