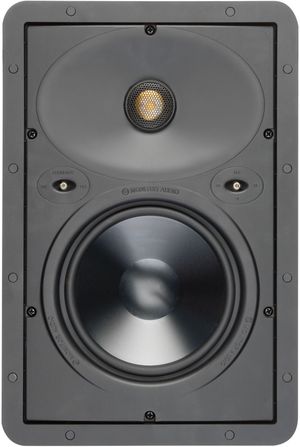

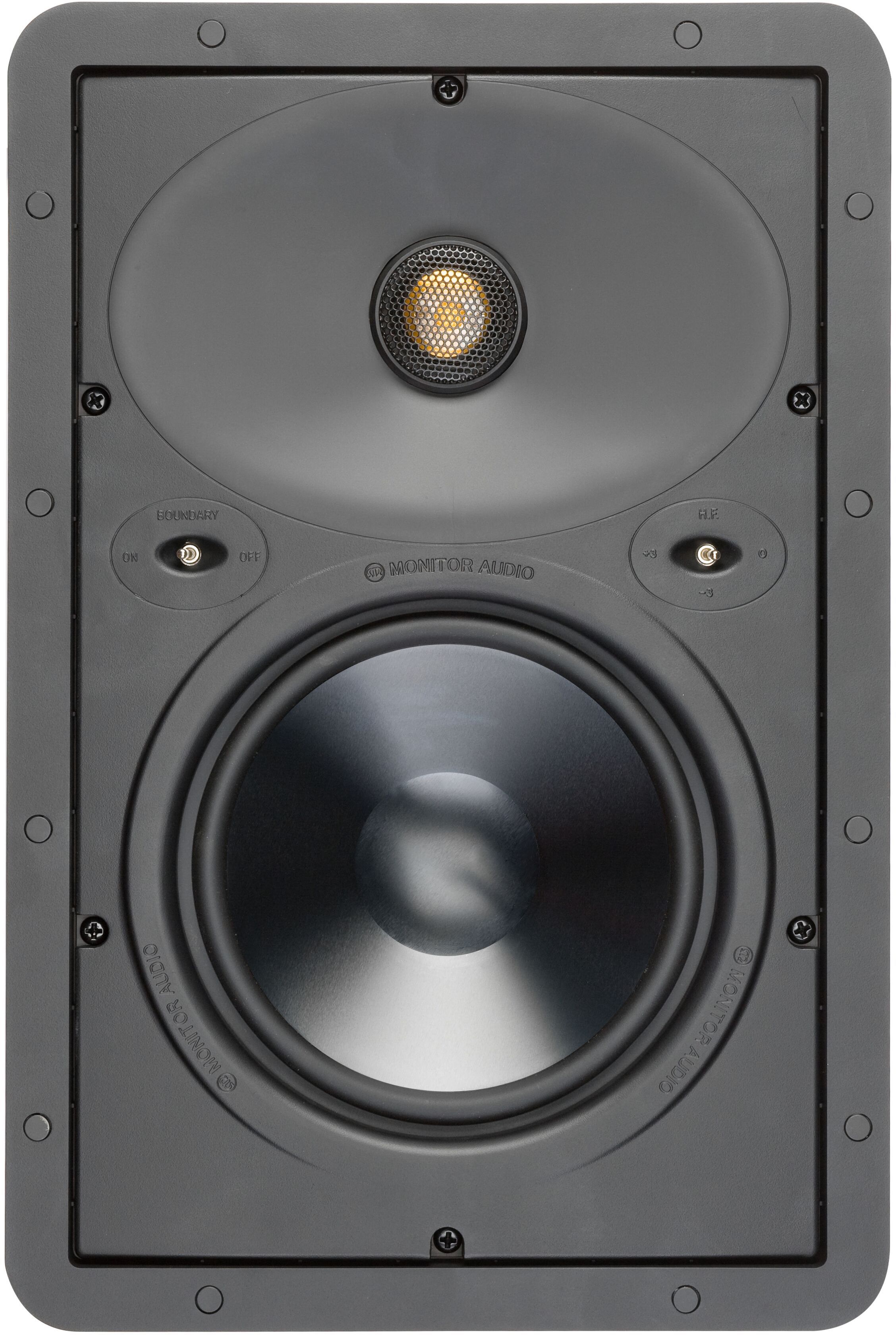

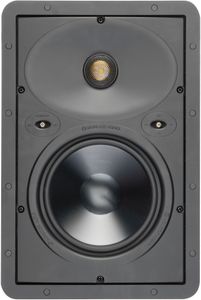

A 6 1/2 inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity.Read More
Optimum imaging and set-up
Pivoting tweeter
High frequency (+3 dB / 0 dB / -3 dB) level adjustment
Boundary compensation (on / off) controls
This product is now available to use with home theatre design software, The CEDIA Designer.
General Specs | |
| Color | Black |
| Speaker Type | In-Wall Speakers |
| RMS Power Handling (Watts) | 65 |
| Frequency Response | 55 Hz – 30 kHz |
| Impedance | 6 ohms |
| Sensitivity | 88.5 |
| Number of Speakers | 1 |
| Product Weight (lbs.) | 5 |
| Manufacturer Warranty | Limited Lifetime |
Additional Specifications | |
| Frequency Response | 55 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 88.5 dB |
| Maximum SPL | 107.4 dBA |
| Power Handling (RMS) | 65 W |
| Recommended Amplifier Requirements | 20 – 65 W |
| Drive Unit Complement | 6 1/2" C-CAM cone bass driver, 1" C-CAM pivoting Gold Dome tweeter |
| Adjustment Controls | HF Level Switch (+3dB / 0dB / -3dB), Boundary Compensation Switch |
| Overall Diameter (Including Grille) | 370 x 250 mm (14 9/16 x 9 13/16") |
| Overall Depth (Including Grille) | 96 mm (3 3/4") |
| Mounting Depth | 92 mm (3 5/8") |
| Cut-Out Hole Diameter | 332 x 213 mm (13 1/16" x 8 3/8") |
| Fixing Type | 6 position Tri-Grip dog fixings |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.26 kg (5 lb) |
| Pre-Construction Bracket | WB6 Pre-Construction Bracket (Purple) |
