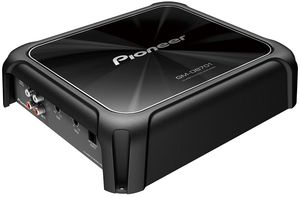

Pioneer 1-Channel Mono Amplifier
At a Glance
Pioneer 1-Channel Mono Amplifier features high quality textured flat panel and tough frame.Read More
$299.99
Pioneer 1-Channel Mono Amplifier features high quality textured flat panel and tough frame.Read More
1,600 Watts Max Power
High Quality Textured Flat Panel and Tough Frame
Bass Boost Remote included
General Specs | |
| Amplifier Channels | Mono Block |
| Amplifier Class | Class D |
| Color | Black |
| Color-Finish Name | Black |
| Manufacturer Warranty | 1 Year |
| Wattage | 1600 |
General | |
| RCA Inputs | MONO |
| Speaker Level Inputs | Yes |
| Bridgeable | Yes |
| Amplifer Class | CLASS-D |
| Crossover Type | Variable LPF |
| Warranty (must be purchased from an Authorized Pioneer Dealer) | 1 Year |
Specifications | |
| Continuous Power (RMS) Output at 1 Ohm | 800W RMS x 1 |
| Continuous Power (RMS) Output at 4 Ohms | 300W RMS x 1 |
| Total Harmonic Distortion (THD) | < 0.5% (100 Hz) |
| Low-Pass Crossover Frequency | 40 Hz |
| High-Pass Crossover Frequency | 240 Hz |
| Bass Boost Level | 0 dB to 18 dB |
| Hi-Volt Input Level Control | 200 mV to 6.5 V |
| Load Impedance Allowance (Ohms) | 1 to 8 |
| Dimensions | 10-3/8" x 2-3/8" x 7-7/8" |
| Continuous Power (RMS) Output at 2 Ohms | 500W RMS x 1 |
| Frequency Response | 10 Hz to 240 Hz |
| Signal-to-Noise (SN) Ratio | > 100 dB |
| Low Pass Slope (dB/octave) | -12dB |
| Bass Boost Frequency | 50 Hz |
| Bass Boost Remote | Yes |
| Terminal Type | Block |
| Protection Control System | Yes |
