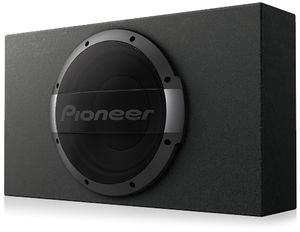

Pioneer 10" Black Sealed Active Subwoofer features fully covered steel mesh grille and sealed enclosure design.Read More
1,200W Max. 300W Nom. Power (Sub)
600W Max. 300W Nom. Power (Amp)
Sealed Enclosure Design
Designed for Easy Installation Under the Seat
Dimensions: 21" x 11-3/4" x 5-7/8"
General Specs | |
| Color | Black |
| Frequency | 20 Hz to 3.4 kHz |
| Color Finish Name | Black |
| Manufacturer Warranty | 1 Year |
| RMS Power Handling (Watts) | 300 |
| Peak Power Rating (Watts) | 1200 |
| Subwoofer Size | 10" |
Key Features | |
| System Type | Powered |
| Frequency Range | 20 Hz to 3.4 kHz |
| Warranty | 1 Year |
| Maximum Peak Power Handling - Watts | 1200 Watts |
| Bass Boost Frequency | 40Hz to 100Hz |
| Built In Amp | Yes |
| Amp DIN | 300 Watts |
| Input Level (@ Gain Max) Speaker Line | 2 V+2 V/5 kOhm |
| Amp Max Current Consumption | 25 A |
| Sensitivity (1W/1m) | 83 dB |
| CTA-2031 Compliant | Yes |
| Continuous Power handling (RMS) - Watts | 300 Watts |
| Speaker Grill | Fully Covered Steel Mesh Grille |
| Bass Boost Level | 0 to +12 dB |
| Amp Max Power Output | 600 Watts |
| Input Level (@ Gain Max) RCA | 100 mV+100 mV/22 kOhm |
| Power Source | Dc 14.4 V |
| Amp Grounding | Negative |
Build | |
| Shape | Round |
| Cone Material | Cellulose fiber |
| Surround Material | Urethane |
| Basket Material | Stamped Metal |
| Magnet Weight | 36.0 oz |
| Voice Coil Bobbin | Kapton |
| Damper | Aramid |
| Size | 10" |
| Center Cap Material | Aluminium |
| Surround Type | Rolled |
| Magnet Material | Ferrite |
| Voice Coil Type | Single Voice |
| Voice Coil wire | Copper |
| Gasket | ABS |
