Product Dimensions 2.3361"h x 9.5979"w x 7.0239"d

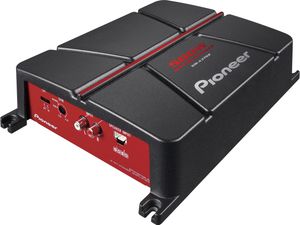

Pioneer 2-Channel Bridgeable Amplifier with 500 watts max power, balanced isolator input circuit, and automatic signal sensing and Turn-ON.Read More
500 Watts Max Power
Automatic signal sensing and Turn-ON
Hi-Volt input level control
Balanced isolator input circuit
From dramatic distinction to dramatic design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.
New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient size for flexibility of installation in various car cabins.
Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver. When connected to an OEM receiver or a receiver without RCA output using speaker wire, the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.
General Specs | |
| Color | Black/Red |
| Depth (in.) | 7.0239 |
| Width (in.) | 9.5979 |
| Height (in.) | 2.3361 |
| Amplifier Class | Class AB |
| Bluetooth Capable | No |
| Amplifier Channels | 2 |
| Manufacturer Warranty | 1 Year |
| Impedance | 2 - 4 Ohms |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | Yes |
| Height (cm.) | 5.99 |
| Depth (cm.) | 18.01 |
| Width (cm) | 24.61 |
General | |
| Number of Channels | 2 |
| Maximum Power Output | 500W |
| Maximum Power Output at 4 Ω | 170W x 2 |
| Nominal Power (RMS) Output at 2 Ω | 95W x 2 |
| Nominal Power (RMS) Output - Bridged at 4 Ω | 190W x 1 |
| Total Harmonic Distortion (THD) | <0.05 % |
| Fuse Rating | 25A |
| Amplifer Class | Class AB |
| Maximum Power Output at 2 Ω | 250W x 2 |
| Maximum Power Output - Bridged at 4 Ω | 500W |
| Nominal Power (RMS) Output at 4 Ω | 60W x 2 |
| Frequency Response | 10Hz ~ 70kHz |
| Signal-to-Noise (SN) Ratio | >95 dB |
Specifications | |
| RCA Inputs | 2-Ch. |
| Crossover Type | LPF |
| Low Pass Slope (dB/octave) | -12db/oct |
| Hi-Volt Input Level Control | 0.3V to 6.5V (RCA in), 3.0V to 26V (SP in) |
| Load Impedance Allowance (W) | 2 to 4 |
| Protection Control System | Yes |
| Low-Pass Crossover Frequency | 80Hz |
| Automatic Signal Sensing and Turn-On | Yes |
| Terminal Type | Screw-Type Terminal |
| Bridgeable | Yes |
| Dimensions (WxHxD)(inches) | 246(W) X 60(H) X 180(D) mm |
