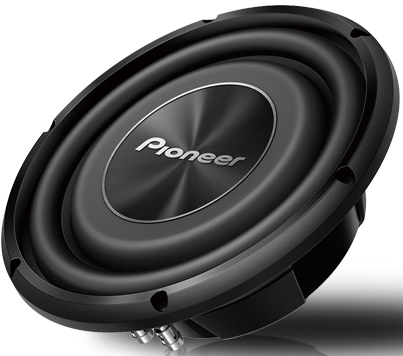

Pioneer A-Series 10" Black Shallow Mount Subwoofer
At a Glance
Pioneer A-Series 10" Black Shallow Mount Subwoofer features 8-AWG push terminals and double reinforced spider.Read More
$199.99
Pioneer A-Series 10" Black Shallow Mount Subwoofer features 8-AWG push terminals and double reinforced spider.Read More
1200 Watts Max Power (300 Watts Nominal)
Unique Design with just 3-3/8" Mounting Depth
Small Enclosure Use (0.35 ~ 0.7 cu. ft.)
4 ohms Single Voice Coil
Glass Fiber and Mica Reinforced IMPP Cone
Double reinforced Spider
8-AWG Push Terminals
Rubber Surround
General Specs | |
| Subwoofer Size | 10" |
| Peak Power Rating (Watts) | 1200 |
| RMS Power Handling (Watts) | 300 |
| Impedance | 4 |
| Shallow Mount | Yes |
| Color | Black |
| Color-Finish Name | Black |
| Collection | A-Series |
| Manufacturer Warranty | 1 Year |
| Frequency | 20 Hz to 900 Hz |
Key Features | |
| System Type | Component Subwoofer |
| Frequency Range | 20 Hz to 900 Hz |
| Warranty | 1 Year |
| Maximum Peak Power Handling - Watts | 1200 Watts |
| Speaker Grill | Sold separately (UD-10GL) |
| Sensitivity (1W/1m) | 85dB |
| CTA-2031 Compliant | Yes |
| Continuous Power handling (RMS) - Watts | 300 Watts |
| Nominal Impedance - OHM | 4 |
Build | |
| Shape | Round |
| Cone Material | IMPP - Composite |
| Surround Material | Rubber |
| Basket Material | Stamped Metal |
| Magnet Weight | 43.4 oz |
| Voice Coil Bobbin | Kapton |
| Damper | Poly cotton |
| Wire Terminals | Push Type |
| Mounting Depth | 3-3/8" |
| Sub-Woofer Cutout Diameter | 9" Dia. |
| Free Air Resonance (Fs) [Hz] | 38 |
| Linear Excursion (Xmax) [mm] | 8.3 |
| Port Box volume [L] | 17 |
| Port Diameter | 3" |
| Center Cap Material | ABS |
| Surround Type | Rolled |
| Magnet Material | Ferrite |
| Voice Coil Type | Single Voice |
| Voice Coil wire | Copper |
| Gasket | PP |
| Unit Size (Dimensions) | 10-1/2" |
| Cut Out dimensions | 9" |
| Equivalent Compliance (VAS) [L] | 17.9 |
| Total Speaker "Q" (Qts) | 0.83 |
| Recommended Sealed Box Volume [L] | 17 |
| Port Length | 7-1/2" |
| Size | 10" |
