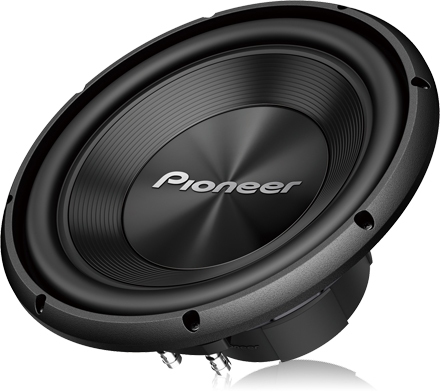

Pioneer A-Series 12" Black Subwoofer
At a Glance
Pioneer A-Series 12" Black Subwoofer features oversized 60 oz double stacked magnet and vented pole yoke for increased power handling.Read More
$159.99
Pioneer A-Series 12" Black Subwoofer features oversized 60 oz double stacked magnet and vented pole yoke for increased power handling.Read More
12˝ glass fiber and mica interlaced Injection Molded Polypropylene (IMPP) cone construction
Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion
Oversized 60 oz double stacked magnet and vented pole yoke for increased power handling
General Specs | |
| Subwoofer Size | 12" |
| Peak Power Rating (Watts) | 1500 |
| RMS Power Handling (Watts) | 500 |
| Impedance | 4 |
| Color | Black |
| Color-Finish Name | Black |
| Collection | A-Series |
| Manufacturer Warranty | 1 Year |
| Frequency | 20 Hz to 2.3 kHz |
Key Features | |
| System Type | Component Subwoofer |
| Frequency Range | 20 Hz to 2.3 kHz |
| Warranty | 1 Year |
| Maximum Peak Power Handling - Watts | 1500 Watts |
| Sensitivity (1W/1m) | 77 dB |
| CTA-2031 Compliant | Yes |
| Maximum Peak Power Handling - Watts | 500 Watts |
| Speaker Grill | 4 DVC |
Build | |
| Shape | Round |
| Cone Material | IMPP - Composite |
| Surround Material | Rubber |
| Basket Material | Stamped Metal |
| Magnet Weight | 60 oz |
| Voice Coil Bobbin | Kapton |
| Damper | Poly cotton |
| Wire Terminals | Push Type |
| Mounting Depth | 5-3/4" |
| Equivalent Compliance (VAS) [L] | 87.1 |
| Total Speaker "Q" (Qts) | 0.69 |
| Recommended Sealed Box Volume [L] | 35.4 |
| Port Length | 6-1/2" |
| Size | 12" |
| Center Cap Material | ABS |
| Surround Type | Rolled |
| Magnet Material | Ferrite |
| Voice Coil Type | Dual Voice |
| Voice Coil wire | Copper |
| Gasket | PP |
| Unit Size (Dimensions) | 12-1/2" |
| Cut Out dimensions | 11-1/8" |
| Free Air Resonance (Fs) [Hz] | 25 |
| Linear Excursion (Xmax) [mm] | 10.1 |
| Port Box volume [L] | 42.5 |
| Port Diameter | 3" |
