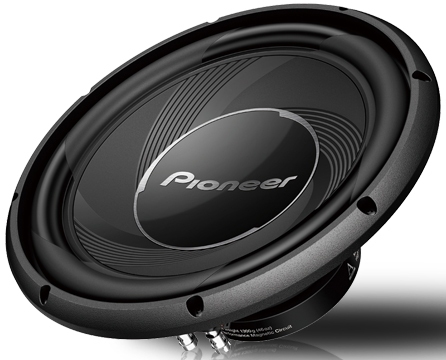

Pioneer A-Series 12" Black Subwoofer
At a Glance
Pioneer A-Series 12" Black Subwoofer features specially designed Voice coil offers higher power handling and IMPP cone produces tight and accurate bass.Read More
$130.00
Pioneer A-Series 12" Black Subwoofer features specially designed Voice coil offers higher power handling and IMPP cone produces tight and accurate bass.Read More
1400 Watts Max Power (400 Watts Nominal)
New Voice Coil Cooling System (VCCS)
IMPP cone produces tight and accurate bass
Specially designed Voice coil offers higher power handling
General Specs | |
| Subwoofer Size | 12" |
| Peak Power Rating (Watts) | 1400 |
| RMS Power Handling (Watts) | 400 |
| Impedance | 4 |
| Mount Depth | 5.38 |
| Color | Black |
| Color-Finish Name | Black |
| Collection | A-Series |
| Manufacturer Warranty | 1 Year |
| Frequency | 22 Hz to 1.6 kHz |
Key Features | |
| System Type | Component Subwoofer |
| Frequency Range | 22 Hz to 1.6 kHz |
| Warranty | 1 Year |
| Maximum Peak Power Handling - Watts | 1400 Watts |
| Sensitivity (1W/1m) | 87 dB |
| CTA-2031 Compliant | Yes |
| Maximum Peak Power Handling - Watts | 400 Watts |
| Speaker Grill | 4 |
Build | |
| Shape | Round |
| Cone Material | IMPP - Composite |
| Surround Material | Rubber |
| Basket Material | Stamped Metal |
| Magnet Weight | 45.9 oz |
| Voice Coil Bobbin | Alminum |
| Gasket | PP |
| Unit Size (Dimensions) | 12-1/2" |
| Cut Out dimensions | 11-1/8" |
| Free Air Resonance (Fs) [Hz] | 32 |
| Linear Excursion (Xmax) [mm] | 8.3 |
| Port Box volume [L] | 42.5 |
| Port Diameter | 3" |
| Center Cap Material | ABS |
| Surround Type | Rolled |
| Magnet Material | Ferrite |
| Voice Coil Type | Single Voice |
| Voice Coil wire | Copper |
| Damper | Poly cotton Aramid |
| Wire Terminals | Push Type |
| Mounting Depth | 5-3/8" |
| Equivalent Compliance (VAS) [L] | 56.1 |
| Total Speaker "Q" (Qts) | 0.7 |
| Recommended Sealed Box Volume [L] | 35.4 |
| Port Length | 6-1/2" |
| Size | 12" |
