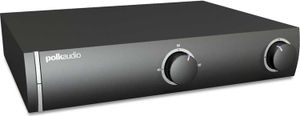

Polk Audio® CSW Series SWA500 Dedicated Digital Power Amplifier

Polk Audio

Model #:

SWA 500

Polk Audio® CSW Series SWA500 Dedicated Digital Power Amplifier-0
Polk Audio® CSW Series SWA500 Dedicated Digital Power Amplifier-1

At a Glance

Product Dimensions 3.5"h x 17"w x 12.63"d

The BASH amplifier combines the fidelity of conventional class A/B amplifiers with the efficiency of class D amplifiers. The bottom line is high power, and cool, reliable operation with precise definition and low distortion. Plug-in data cards for each subwoofer, called SPEX cards, preprogram equalization, infrasonic filter characteristics and power output that best matches the subwoofer being used. Each SPEX card also custom install subwoofers/amp has specific power control circuitry tailored to each subwoofer’s requirements for an even greater level of reliability.Read More

$899.00

Get to know this product.

Product Overview

Product Overview

Class D digital design delivers huge power and runs cool for superb long-term reliability

500 Watts into 4 Ohms at <0.01% THD

Powers up to two CSW subs of the same model

Front panel low pass filter and level adjustment knobs make "tweaking" a snap.

Plug in SPEX circuit cards (supplied) optimize the amplifier to match the specific subwoofer model being used

Custom frequency shaping (programmed into SPEX card) for the deepest, most accurate bass perfromance

Useful Documents
Product Brochure
Manual
Specifications

General Specs

Amplifier ClassClass D
Analog Audio(RCA) Input1
ColorBlack
Width (in.)17
Width (cm)43.18
Depth (in.)12.63
Depth (cm)32.0802
Height (in.)3.5
Height (cm)8.89
Shipping Width (in.)21.5
Shipping Width (cm)54.61
Shipping Depth (in.)21.5
Shipping Depth (cm)54.61
Shipping Height (cm)43.18
Shipping Height (in.)17
Product Weight (lbs.)17
Product Weight (kg)7.711064
Weight Kilogram6.350288
MPNAW0515
Manufacturer Warranty3 Years

Connections

Coaxial Digital Audio Inputs:1
Speaker Connectors:Posts
Analog Audio(RCA) Output:1

Overall

Total Pieces1

Accessories

Included Accessories(2) SPEX Cards - One for each of the Polk subwoofers this device supports

Warranty

Electronics Warranty3 years
Original Purchaser OnlyYes

Shipping Cartons

Carton 117" (43.18 cm) h x 21.5" (54.61 cm) w x 21.5" (54.61 cm) d - 14 lbs (6.35 kg)

Amplifier

Total Pieces1
OrientationHorizontal
Height3.5" (8.89 cm)
Width17" (43.18 cm)
Depth12.625" (32.07 cm)

Internal Amplifier

Power500 watts
Power - One Channel Driven250 watts
Power - Two Channel Driven500 watts
Amplifier ClassHybrid Class D

Inputs

Audio InputsLFE (Unfiltered); Pair (L/R) Analog RCA
Speaker Inputs(2) Pair of Binding Posts - Gold Plated

Outputs

Audio OutputsPair (L/R) Analog RCA
Speaker Outputs(2) Pair of Binding Posts - Gold Plated

Power

US Voltage120 volts A/C
