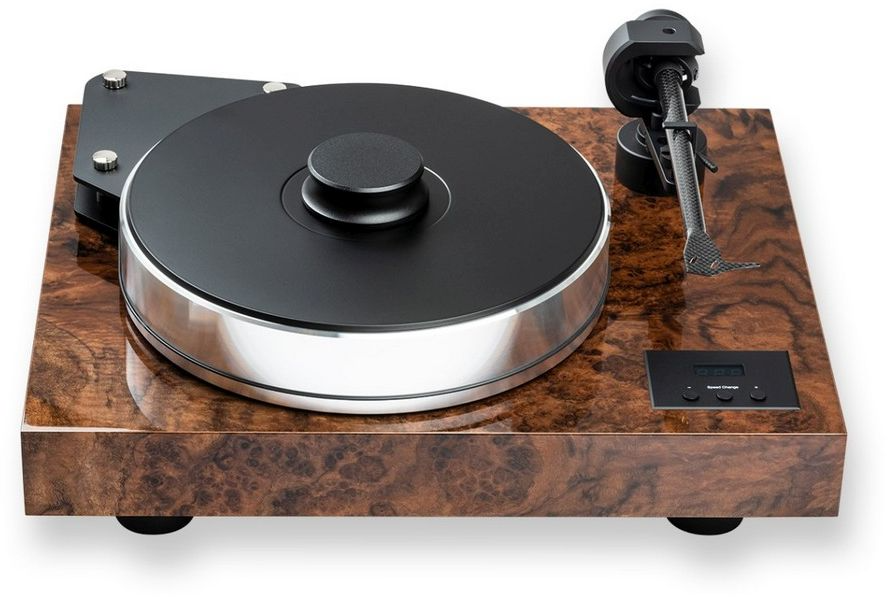

The Xtension 10 shares much with its larger brother the Xtension 12. Designed to be smaller and with a 10″ tonearm, the Xtension 10 delivers nearly all of the 12’s performance in a more compact and less expensive package. Pro-Ject’s Xtension 10 incorporates over 20 years of experience in turntable design and manufacture.Read More
The Xtension 10 represents their latest technological efforts to address mass-decoupling and resonance reduction. Beginning with the mass-loaded magnetically floated sub-chassis and the precision balanced sandwich alloy platter (recycled vinyl/alloy), the foundation of this system weighs in at a super-heavy 48lbs.
Additionally, Pro-Ject employs magnetic decoupling feet to thwart airborne or mechanical vibration from disturbing playback. This mass and isolation creates an environment of extremely low resonance allowing music to emerge from an ultra-silent black background. An AC motor with a two-step pulley drive with Electronic Speed Control maintains perfect pitch and rhythm resulting in inaudible wow, flutter and noise.
Further reducing noise and vibration is the isolated Sorbothane mounting board for the 10″ carbon-fiber tonearm. The conical arm and unified headshell are fabricated from a single piece of carbon fiber to avoid problems associated with standing wave reflections. Single screw fixing of the armtube allows for easy rotation for adjustment of needle azimuth. Additionally the arm is fully adjustable for VTA. A high-performance 123cm phono interconnect cable is included.
Super-heavy 22 kg belt drive turntable
Mass loaded magnetic floating subchassis
Precision balanced sandwich-platter
Inverted ceramic ball bearing with magnetic support
Heavy weight record clamp
Extremely low level of natural resonance
Perfect decoupling through magnetic feet
Electronic speed control 33/45/78 rpm
Tonearm 10cc Evolution made from carbon fibre
Inverted tonearm bearings (ABEC 7 quality)
Dust cover included
Handmade in Europe
General Specs | |
| Color/Finish Name | High Gloss Burl |
| Turntable Speed | 78 |
| Drive Type | Belt-Drive |
| Signal to Noise Ratio | 73 |
| Collection | Xtension 10 Evolution |
| Manufacturer Warranty | 2 Year |
Specifications | |
| Speed: | 33, 45, 78 (electronic speed change) |
| Platter: | 300mm aluminium (TPE damped) |
| Wow & flutter: | ± 0,01% (max) |
| Speed variance: | ± 0,09% (max) |
| Effective Arm Length: | 254mm |
| Effective Tonearm Mass: | 8.5g |
| Overhang: | 16mm |
