Product Dimensions 33.6875"h x 23.625"w x 23.4375"d
Convection cooling system provides a quick cool down and consistent temperature. Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation.Read More
Industry Exclusive: Full-depth lower interior maximizes storage options
Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
Stainless steel interior
Stainless steel cabinet, toe-kick, and accents
U-Adjust Interior: 19 adjustable positions
Two removable, full-extension Slide & Secure Bins
Two removable, full-extension wine racks
Convection cooling system provides a quick cool down and consistent temperature
Temperature range: 33°F - 70°F
Adjustable bright white or blue LED lighting
Soft close door with articulating hinge
Volume of 5.2 cu ft holds up to 14 wine bottles (750 ml) and 68 bottles (12 oz) or 111 cans (12 oz)
Digital touch pad control with blue LED display
Stainless steel handle (7/8" diameter)
Integrated model requires 3/4" custom door panel and handle (not supplied by U-Line)
Field reversible door is shipped right-hand hinged
Built-in or freestanding
Four adjustable leveling legs

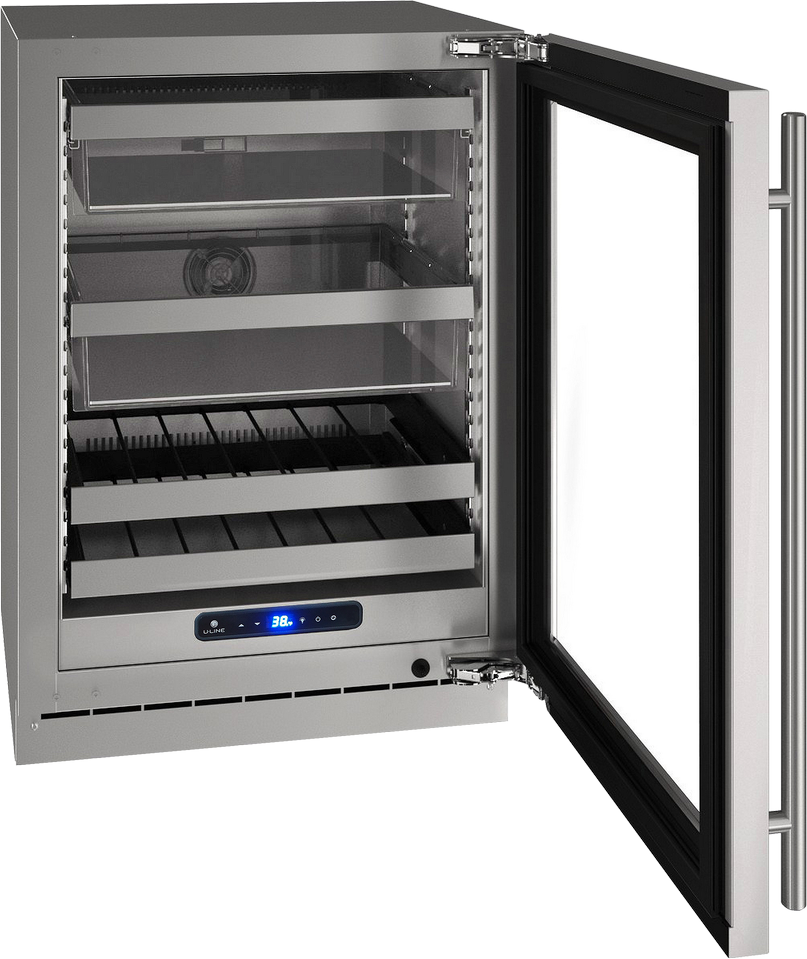

*Image shown is UHBV524-SG41A with right hand hinge. Image for UHBV524-SG51A with left hand hinge not available.
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Total Capacity (cu. ft.) | 5.2 |
| Bottle Capacity | 68 |
| Installation Type | Freestanding |
| Door Swing Option | Left Hinge |
| Number of Shelves | 5 |
| Light(s) | LED |
| Appliance Fit Width (in.) | 24 |
| Appliance Fit Width (cm) | 62 |
| Depth (in.) | 23.4375 |
| Depth (cm) | 59.5313 |
| Width (in.) | 23.625 |
| Width (cm) | 60.0075 |
| Height (in.) | 33.6875 |
| Height (cm) | 85.5663 |
| Overall Height (in.) | 33.6875 |
| Overall Height (cm) | 85.5663 |
| Product Weight (lbs.) | 163 |
| Product Weight (kg) | 73.935 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Voltage | 115 |
