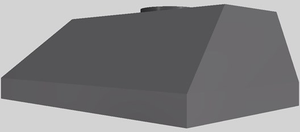

Vent A Hood® Premier Magic Lung® 47" Gunsmoke Mounted Insert Liner


Model #:

BH446PSLBGS

Vent A Hood® Premier Magic Lung® 47" Gunsmoke Mounted Insert Liner-0
Vent A Hood® Premier Magic Lung® 47" Gunsmoke Mounted Insert Liner-1

At a Glance

Product Dimensions 12"h x 46.375"w x 22.50"d

The standard ventilation of the BHPSLD model is intended for use over standard cooking equipment. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit. Special Notes: LED lights. This model is not available with heat lamps.Read More

$4,484.00

Get to know this product.

Product Overview

Product Overview

The standard ventilation of the BHPSLD model is intended for use over standard cooking equipment. All liners in this series are 22 1/2" deep. Recommended mounting height is 27" - 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit. Special Notes: LED lights. This model is not available with heat lamps.

Sones: 6.6

Number of Lights : 3

CFM: 1200

Useful Documents
Specifications

General Specs

ColorGray
Color/Finish NameGunsmoke
Range Hood TypeInsert
Ventilation TypeDucted
Vent LocationTop
Duct Size (in.)12
Bulb TypeLED
Sones Rating6.6
Noise Level (Sones)Standard - (High)
Maximum CFM1200
Appliance Fit Width (in.)47
Appliance Fit Width (cm)118
Width (in.)46.375
Width (cm)117.79
Height (in.)12
Height (cm)30.48
Depth (in.)22.50
Depth (cm)57.15
Height Above Cooktop27 - 30
Height Above Cooktop Centimeter68.58 - 76.20
ENERGY STAR CertifiedNo
CollectionPremier Magic Lung®
Voltage115

More Information

RPM1550
CFM SP@0.0"1200
Equiv. CFM$1800
CFM SP@0.1"1062
CFM SP@0.2"960
CFM SP@0.3"860
