Product Dimensions 84.06"h x 36"w x 26.5"d

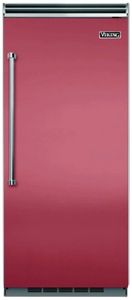

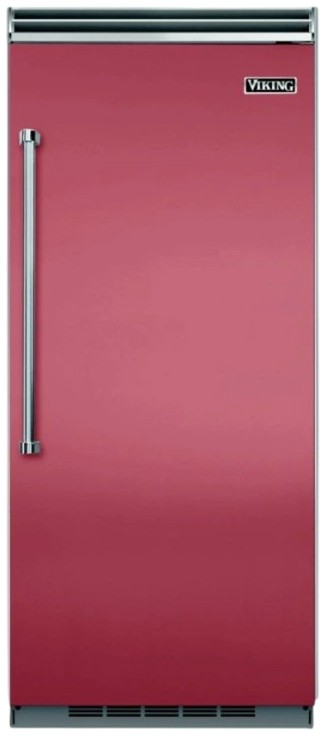

The Viking® 5 Series 19.2 Cu. Ft. Valentine Right Hinge All Freezer combines powerful performance with elegant design. With advanced cooling technology, customizable storage, and a frost-free system, it keeps food fresh longer while adding a sleek, modern touch to any premium kitchen setup.Read More
Variable Speed DC Overdrive™ Compressor is one of the quietest, most technologically advanced compressors available
Electronic controls maintain even temperatures within one degree °F to keep food fresher longer
Multi-channel airflow system and Odor Eliminator™ Evaporator removes odors and excess humidity
Maintenance-free Super Clog Resistant™ Condenser provides expense free peace of mind
Adaptive defrost on All Freezer models control the timing of the defrost periods, instead of an electromechanical defrost timer
All items are in clear view with bright energy efficient LED lighting from top and sidewalls
Ramp on theater lighting provides better visibility
Adjustable full-width wire shelves along with one full-width metal shelf and two full-width slide-out wire baskets with tempered glass fronts allows for increased storage options
EXCLUSIVE adjustable metal door bins to securely store heavy items
Full-extension precision ball bearing slides on all baskets and drawers allow for drawers to easily glide open and close for access
Factory-installed automatic ice maker with full-width large-capacity ice drawer includes two separate ice pans for maximum ice production and storage
Order as right or left hinge
General Specs | |
| Color | Red |
| Color/Finish Name | Valentine |
| Door Color | Valentine |
| Total Capacity (cu. ft.) | 19.2 |
| Installation Type | Built-In or Freestanding |
| Door Panel Type | Panel |
| Depth Type | Standard Depth |
| Defrost System | Automatic |
| Door Swing Option | Right Hinge |
| Freezer Features | Single Ice Maker, Temperature Control, Digital Temperature Display |
| Appliance Fit Width (in.) | 36 |
| Appliance Fit Width (cm) | 91 |
| Width (in.) | 36 |
| Width (cm) | 91.44 |
| Depth (in.) | 26.5 |
| Depth (cm) | 67.31 |
| Depth Less Door (in.) | 22.19 |
| Depth Excluding Handles (in.) | 24 |
| Depth Including Handles (in.) | 26.5 |
| Depth Excluding Handles (cm) | 60.96 |
| Depth Including Handles (cm) | 67.31 |
| Depth Less Door (cm) | 56.36 |
| Height (in.) | 84.06 |
| Height (cm) | 213.51 |
| Overall Height (in.) | 84.05 |
| Overall Height (cm) | 213.49 |
| Height Without Door/Hinge (Case) (in.) | 82.75 |
| Height Without Door/Hinge (Case) (cm) | 210.19 |
| Product Weight (lbs.) | 605 |
| Product Weight (kg) | 274.42 |
| Weight Kilogram | 274.42 |
| Series | 5 Series |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 90 Days Full Cosmetic Parts / 2 Year Full Complete Product / 5 Year Limited Surface/Tube Burners |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 15 |
Additional Dimensions | |
Overall Depth From Rear | |
| To Front Edge of the Side Trim | 22.19" / 56.4 cm |
| To Front of Top Grille | 24" / 61 cm |
| To Front of Handle Endcap | 26.5" / 67.3 cm |
| Cutout Width | 29.06" minimum to 29.75 maximun / 75.6 cm / 30" / 74.9 cm |
| Cutout Height | 82.09" minimum to 84.06 / 213.5 cm maximum |
| Cutout Depth | 24” / 61 cm minimum |
