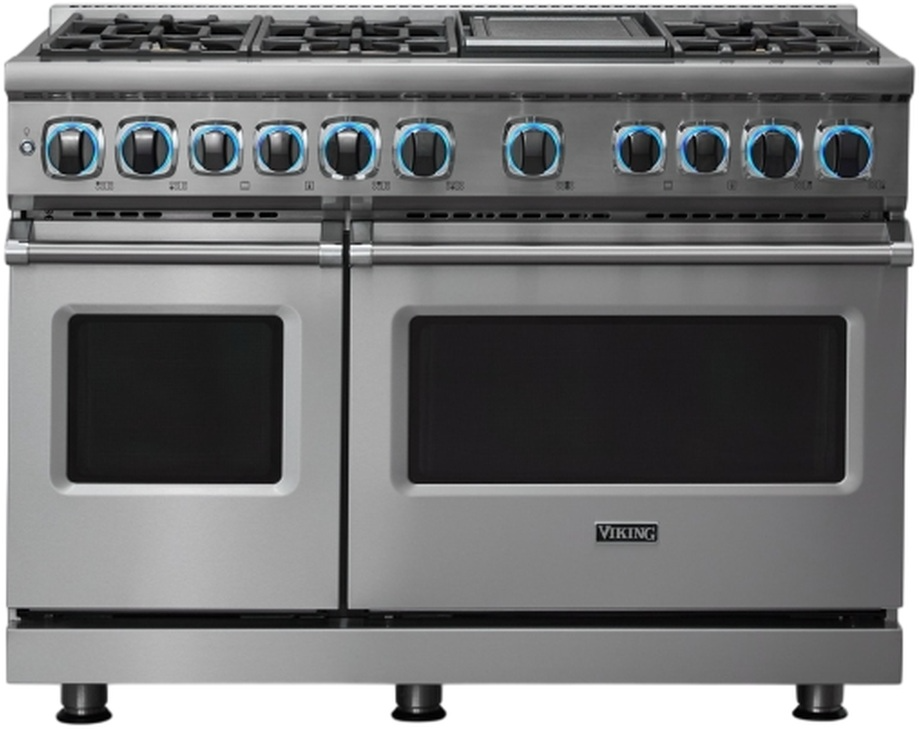

Viking® 7 Series 48" Stainless Steel Pro Style Dual Fuel Range
At a Glance
Product Dimensions 37.56"h x 47.88"w x 30"d
Viking Professional 7 Series Ranges adapt Viking Elevation Burners™ used on the Viking Commercial product line with tried and true robust features from the Viking Professional product line, to create a restaurant-quality range that delivers power and precision for your home. Now you can make dinner for your family instead of reservations.Read More
Related items:
Get to know this product.
Product Overview
Product Overview
Elevation™ Burners
Elevation™ Burners with brass flame ports boast 23,000 BTUs across the front of all width configurations, with multiple 15,000 BTUs and one 8,000 BTU burner across the rear.
VariSimmer™ Setting
The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
SureSpark™ Ignition System
The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
SoftLit™ LED Lights
BlackChrome™ Knobs with CoolLit™ LED backlighting.
Gourmet-Glo™ Infrared Broiler
Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish, locking in juices.
Rapid Ready™ Preheat System
Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.
Commercial-Type Surface Power
Exclusive Viking Elevation™ Burners with brass flame ports boast 23,000 BTUs across the front of all width configurations, with multiple 15,000 BTUs and one 8,000 BTU burner across the rear
Three burner sizes efficiently deliver heat to any size cookware
Exclusive VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures
Reversible Cast Iron Griddle/Grill
Thermostatically controlled reversible cast iron griddle/grill evenly to provide consistent cooking across the entire surface and can be easily removed for cleaning
Inspired by the Viking Commercial plancha, the ViChrome™ Griddle features the PATENT PENDING StayCool™ Trough Handle and grease containment system that strategically directs excess grease into a removable capture trough for quick and easy cleanup
Optional ViChrome™ Griddle accessory interchanges with the Reversible Grill/Griddle
Dual Fuel Oven Functions
Patented Vari-Speed Dual Flow™ Convection System has the largest fan in the industry; the 8 1/2" two-speed fan works bi-directionally for maximum airflow and excellent cooking results
12 high-performance cooking modes: bake, convection bake, TruConvec™ Convection Cooking, convection roast, hi, med and low broil, convection broil, convection dehydrate, convection defrost, proof (left oven on 48"W. range), and self-clean
Concealed 10 pass dual bake element provides precise temperature control (right oven on 48"W. range)
Easy Operation and Cleanup
Self-Clean Oven
Continuous grate design allows easy movement of pots and pans from burner to burner
Grates, burner caps, knobs, griddle and accessories can be easily removed and taken to the sink for cleaning
Useful Documents
Specifications
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Door Color | Stainless Steel |
| Handle Color | Stainless Steel |
| Trim Color | Polished Chrome |
| Total Capacity (cu. ft.) | 7.3 |
| Number of Oven(s) | Double |
| Fuel Type | Dual Fuel (NG) |
| Door Panel Type | Glass |
| Burner Type | Sealed |
| Range Type | Pro-Style |
| Number of Elements/Burners | 7 |
| Cooktop Surface Style | Burner Grate, Griddle |
| Cooktop Surface | Porcelain Coated |
| Grate Material | Porcelain-Enameled Cast Iron |
| Oven Cleaning Method | Self Cleaning |
| Total Number Of Oven Racks | 3 |
| Total Number Of Rack Positions | 6 |
| Oven Features | Adjustable Leg Height, Gliding/Roll Out Rack, Hidden Bake Element, Oven Light, Proofing Mode, Broiler in Oven, Defrost, Temperature Control, Dehydrator |
| Cooktop Features | Continuous Grate, Griddle Included, LP Convertible, Removable Grates, Simmer Element |
| Air Fry | No |
| Induction Cooking | No |
| Convection Cooking | Yes |
| Smart Compatible | No |
| Outdoor Approved | No |
| Drawer Type | No Drawer |
| Appliance Fit Width (in.) | 48 |
| Appliance Fit Width (cm) | 122 |
| Width (in.) | 47.88 |
| Width (cm) | 121.6 |
| Height (in.) | 37.56 |
| Depth (in.) | 30 |
| Depth (cm) | 76.2 |
| Depth w/Door Open 90 Degrees (in.) | 46.3 |
| Depth With Door Open 90 Degrees (cm) | 117.6 |
| Product Weight (lbs.) | 673 |
| Product Weight (kg) | 305.3 |
| Weight Kilogram | 310.3 |
| Manufacturer Warranty | 2 Year Parts & Labor |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Series | 7 |
| Voltage | 208 - 240 |
Overview | |
| Oven Volume | Right - 4.7 Cu. Ft. / Left - 2.6 Cu. Ft. |
| Griddle Burner Rating | 15,000 BTU Natural Gas (4.4 kW Nat) |
| Maximum Amp Usage | 240V - 43.0 amps / 208V - 37.3 amps |
| Ignition System | SureSpark™ |
| Grates | Continuous |
| Convection | Vari-Speed Dual Flow™ Convection System |
| Broiler | GourmetGlo™ Infrared Broiler |
| Burners | 6 Sealed Burners with 12" Griddle |
Weight and Dimensions | |
| Overall Height | To top of side trim – 35-15/16” (91.3 cm) min. 37-9/16” (95.4 cm) max. Legs adjust – 1-5/8” (4.1 cm) |
| Overall Depth from Rear | To end of side panel – 25-1/4” (64.1 cm); To front of door – 26-15/16” (68.4 cm); To end of door handle – 30” (76.2 cm) |
| Oven Interior Width | Right oven - 25-5/16” (64.3 cm) / Left oven - 13-3/4” (34.9 cm) |
| Oven Interior Height x Depth | 16.5" x 19.5" |
