Product Dimensions 15.31"h x 7.38"w x 3.12"d

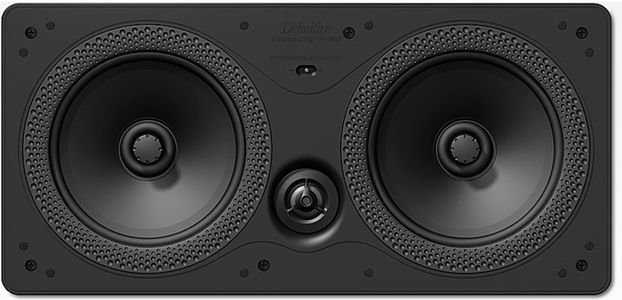

The world famous performance of Definitive Technology speakers goes undercover with the DI 5.5 LCR. Optimized for left/center/right front stage configurations, this speaker shares the same accurate sonic signature with all other DI Series speakers for seamless performance and worry-free mixing and matching.Read More
White Finish
Audiophile-grade quality with the latest generation BDSS™ drivers
Flangeless design, micro-perf grille and flush mounting reduce visibility
Pure aluminum dome tweeters and adjustable high-definition crossover produce pristine highs
Rigid PolyStone™ baskets eliminate vibrations to prevent ringing and other distortions
Proprietary BDSS™ technology delivers the wide dynamic range and deep bass output of much larger drivers in a small-sized, high-efficiency mid/woofer.
BDSS™ technology, aim-ready tweeters and a specially-contoured AeroRing™ around the driver distributes natural, well-balanced sound everywhere in the room.
With a minimal visible surface area, hidden flange architecture and micro-perf grille, the DI 5.5 LCR disappears into any environment, without the need for custom sheetrock or spackle work.
A sophisticated adjustable crossover network with custom, high-precision components produces superior sonic purity for crisp, clean sound.
General Specs | |
| Product Weight (lbs.) | 8 |
| Weight Kilogram | 4.53592 |
| MPN | UFAA |
| Height (cm.) | 38.8874 |
| Depth (cm.) | 7.9248 |
| Width (cm) | 18.7452 |
| Product Weight (kg) | 3.6 |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Depth (in.) | 3.12 |
| Height (in.) | 15.31 |
| Width (in.) | 7.38 |
Specifications | |
| Speaker Type | In-Ceiling Speaker |
| Sold As | Each |
| colour | White |
| Availability | US |
| Weight | 8 lbs (3.63 kg) |
| Grille Dimensions | 15.31" (38.89 cm) h x 7.38" (18.75 cm) w |
| Shipping Carton | 6.63" (16.84 cm) h x 17.38" (44.15 cm) w x 9.63" (24.46 cm) d |
| Shipping Weight | 10 lbs (4.54 kg) |
Driver Complement | |
| Tweeter - Tweeter | (1) 1" (2.54 cm) d (Round) Tweeter - Tweeter |
| Mid/Woofer - Tweeter | (2) 5.25" (13.34 cm) d (Round) Mid/Woofer - Tweeter |
In-Wall Mount | |
| Shape | Rectangle |
| Dimensions | 6.44" (16.36 cm) h x 14.38" (36.53 cm) w |
| Clearnace Required for Mounting Dogs (add to each side of cutout) | 1" (2.54 cm) |
Inputs | |
| Ethernet | Yes |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - na |
Audio Quality | |
| Total Frequency Response | 28 Hz to 30 Hz |
| Nominal Impedance | 8 ohms |
| Max Sensitivity (1 watt @ 1 meter) | 89 dB |
Crossover | |
| Type | A/V Receiver Crossover Settings |
| A/V Receiver Crossover Settings | Small (80 Hz) |
Warranty | |
| Cabinet Warranty | 5 Years |
| Drivers Warranty | 5 Years |
Included Accessories | |
| Wall Mounting Template | 1 |
| Paintable Magnetic Grille | 1 |
