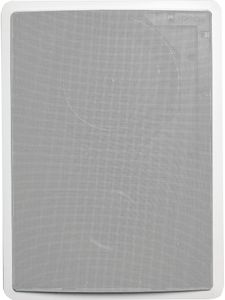

IW Sub 10/10 Fully-Enclosed In-Wall Subwoofer features 10” in-wall subwoofer with integral sealed enclosure, fits standard 16” on-center stud-bay. (1) 10” woofer and (1) 10” sub radiator.Read More
Reach new depths with the IWSub 10/10 subwoofer. Featuring the precision technology of SuperCube free-standing subwoofers, the IWSub 10/10 produces musically accurate low end while vanishing into your walls. Together with the SubAmp 600, the audio expression is second to none.
High impact bass comes to life without using any floor space
Perfect results install in any wall with the fully self-enclosed design
Dynamic lows resonate from a 10" active subwoofer driver and 10" ultra low bass radiator
For use exclusively with Definitive SubAmp600 (sold separately)
Experience dynamic lows with the precise pairing of a special shallow-depth, long excursion active driver pressure-coupled to an Ultra Low Bass radiator.
Enclosed in a dense wood medite enclosure that eliminates vibrations and buzzing, the IWSub 10/10 delivers deep, powerful bass.
Nearly invisible and easily added to new or existing construction, the IWSub 10/10 produces musically accurate bass impact that’s never before been available from a compact in-wall subwoofer.
The IWSub 10/10 pairs exclusively with the companion outboard SubAmp 600 (sold separately) which supplies 600 Watts of digital power and sophisticated crossover functions.
General Specs | |
| Product Weight (lbs.) | 27 |
| Weight Kilogram | 13.60776 |
| MPN | UCYA |
| Height (cm.) | 50.4952 |
| Width (cm) | 36.5252 |
| Product Weight (kg) | 12.15 |
| Color | Black |
| Impedance | 4 Ohms |
| Number of Speakers | 1 |
| Height (in.) | 19.88 |
| Width (in.) | 14.38 |
Overall | |
| Total Pieces | 1 |
Accessories | |
| Included Accessories | (1) Wall Mounting Template; (1) Paint Mask; (1) Paintable Grille; (1) Self Adhering Foam Gasket |
| Required Accessories | (1) SubAmp 600 |
Warranty | |
| Cabinet Warranty | 5 years |
| Drivers Warranty | 5 years |
Shipping Cartons | |
| Carton 1 | 25.5" (64.77 cm) h x 19.5" (49.53 cm) w x 10.5" (26.67 cm) d - 30 lbs (13.61 kg) |
In-Wall Speaker | |
| Quantity Included | 1 |
| Availability | US |
| Driver Complement | (1) 10" (25.4 cm) d (Round) - Subwoofer; (1) 10" (25.4 cm) d (Round) - Bass Radiator |
| Weight | 27 lbs (12.25 kg) |
| Grille Dimensions | 21" (53.34 cm) h x 15.5" (39.37 cm) w |
In-Wall Mount | |
| Shape | Rectangle |
| Dimensions | 19.88" (50.5 cm) h x 14.38" (36.53 cm) w |
Inputs | |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - na |
Audio Quality | |
| Total Frequency Response | 16 Hz → 200 Hz |
| Nominal Impedance | 4 ohms |
