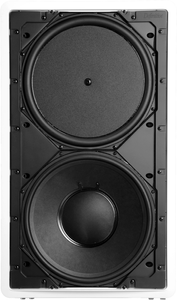

The IWSub Reference is a completely self-enclosed in-wall subwoofer for use in whole house distributed music or stealth home theater installations. It's a deep bass powerhouse that will disappear in your room. It has a non-resonant sealed medite (a dense wood product) enclosure and a paintable bezel and grille.Read More
Inside the completely self-enclosed in-wall sub is the technical brainpower derived from Definitive's award winning SuperCube free-standing subwoofers. It includes a special shallow-depth, long excursion active 13" driver pressure-coupled to a 13" Ultra Low Bass radiator for a total bass radiating surface area of over 265 square inches—more than an 18-inch woofer but with greater speed and control. Combined, these features result in tight musical excellence.
Enjoy deep high impact bass without using any floor-space
Fits in standard new or existing wall construction - fully enclosed design ensures perfect results in any wall
One 13 inch active subwoofer driver pressure coupled to one 13 inch Ultra Low Bass radiator
Use with Definitive SubAmp 600 only (sold and packaged separately)
Available Finishes: White
General Specs | |
| Color | Black |
| Width (in.) | 15.50 |
| Height (in.) | 26.19 |
| Weight Kilogram | 20.41164 |
| MPN | UCXA |
| Width (cm) | 39.37 |
| Height (cm.) | 66.5226 |
| Subwoofer Size | 13+ |
Specifications | |
| Sold As | Each |
| colour | White |
| Orientation | Vertical |
| Grille Dimensions | 26.19" (66.52 cm) h x 15.5" (39.37 cm) w |
| Shipping Cartons | 30" (76.2 cm) h x 19.5" (49.53 cm) w x 10.5" (26.67 cm) d |
| Shipping Weight | 45 lbs (20.41 kg) |
Driver Complement | |
| Subwoofer | 1) 13" (33.02 cm) d (Round) |
| Bass Radiator | (1) 13" (33.02 cm) d (Round) |
In-Wall Mount | |
| Available Orientations | Vertical |
| Shape | Rectangle |
| Dimensions | 25.13" (63.83 cm) h x 14.38" (36.53 cm) w |
Audio Quality | |
| Total Frequency Response | 14 Hz to 200 Hz |
| Nominal Impedance | 4 ohms |
Inputs | |
| Ethernet | Yes |
| Speaker Inputs | (1) Pair of Heavy Duty, Spring Loaded - na |
Warranty | |
| Cabinet Warranty | 5 Years |
| Drivers Warranty | 5 Years |
| Original Purchaser Only | Yes |
Accessories | |
| Required Accessories | (1) SubAmp 600 |
Included Accessories | |
| Wall Mounting Template | 1 |
| Paint Mask | 1 |
| Paintable Grille | 1 |
| Self Adhering Foam Gasket | 1 |
